Carbon Square 24X24 Polished

Part of: Core Fundamentals

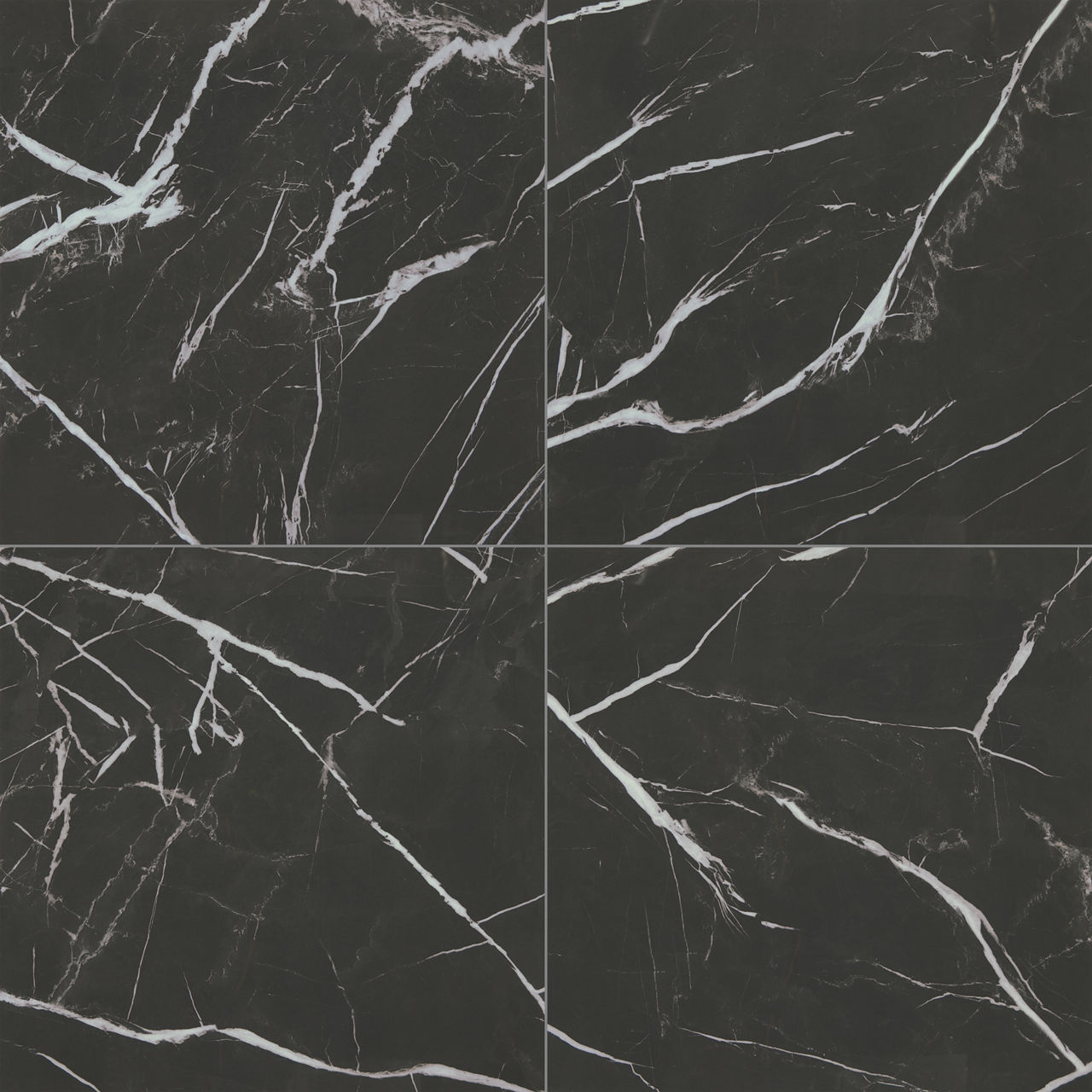

Carbon CT73 pairs a dramatic charcoal base with bright white veining across a large-format 24x24 glazed porcelain floor tile.
Countertop
Countertop
Floor
Floor
Wall
Wall
Where To Buy
Still Deciding?
Request a FREE design appointment with one of our experts!
Other Sizes And Finishes
12X12 | Matte
24X24 | Matte
Other Formats
Carbon Rectangle
Carbon Carbon | Rectangle
Carbon Mosaic Tile
Carbon Carbon | Mosaic Tile
Other Available Colors
Almond 24X24 Stone Look Porcelain | Platinum by Daltile CT71
Almond 24X24 Stone Look Porcelain | Platinum by Daltile Almond | CT71
Calacatta Empire 24X24 Stone Look | Platinum by Daltile CT76
Calacatta Empire 24X24 Stone Look | Platinum by Daltile Calacatta Empire | CT76
Dove Gray 24X24 Stone Look Porcelain | Platinum by Daltile CT72
Dove Gray 24X24 Stone Look Porcelain | Platinum by Daltile Dove | CT72
Magnolia 24X24 Stone Look Porcelain | Platinum by Daltile CT70
Magnolia 24X24 Stone Look Porcelain | Platinum by Daltile Magnolia | CT70
For a full list of colors, visit https://www.daltile.com/products/stone-look/platinum/carbon-square-24x24-polished
COORDINATING TRIMS
Bullnose
Bullnose
Size : 3X12
Shape: P43C9
For a full list of coordinating trim options, visit https://www.daltile.com/products/stone-look/platinum/carbon-square-24x24-polished
Download Tear Sheet

Overview

Carbon is the darkest colorway in the CT70�CT74 range, built around a deep charcoal base with bright, contrasting white veining running through it. In 24x24, that contrast becomes a focal point across a floor, especially in rooms with generous natural or artificial light to offset the darker tone. The glazed porcelain body carries a High (V3) shade variation rating, meaning individual tiles will vary noticeably in pattern and tone. A 3/16" grout joint is recommended, with brick-joint overlap capped at 33 percent.

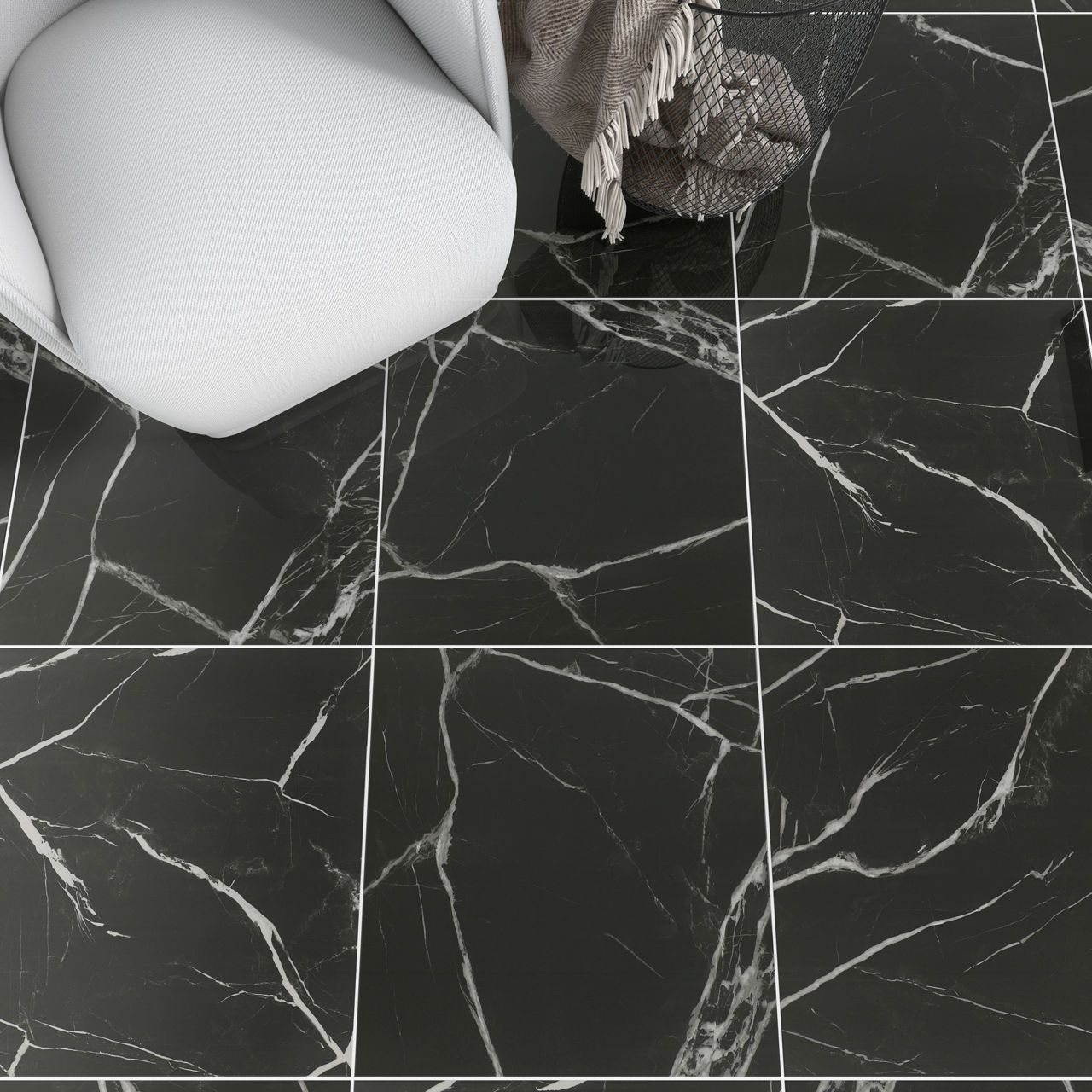

DAL_CT73_24x24_Carbon_PL_ScanPanel_Prop_01
DAL_CT72_24x24_Dove_PL_Angle
DAL_CT72_24x24_Dove_PL_Grid

Design Note

Carbon works best in spaces designed to feel dramatic rather than understated, from a statement powder room floor to a moody kitchen island surround. Because the tile is not offered in a 6x18 wall size, it pairs most naturally with a plain painted wall or a contrasting lighter tile rather than a matching wall installation. Brass or warm gold fixtures stand out sharply against the charcoal base, while matte black hardware tends to recede into it.

  • Product Details

    Collection Name Platinum
    Color Code CT73
    Color Name Carbon
    Color Family Black
    Nominal Size 24X24
    Actual Size 23.622 X 23.622
    Nominal Thickness 5/16
    Mount Method Loose
    Size Category Large
    Product Shape Square
    Country of Origin Vietnam
    Finish Polished
    Body Type Glazed Porcelain

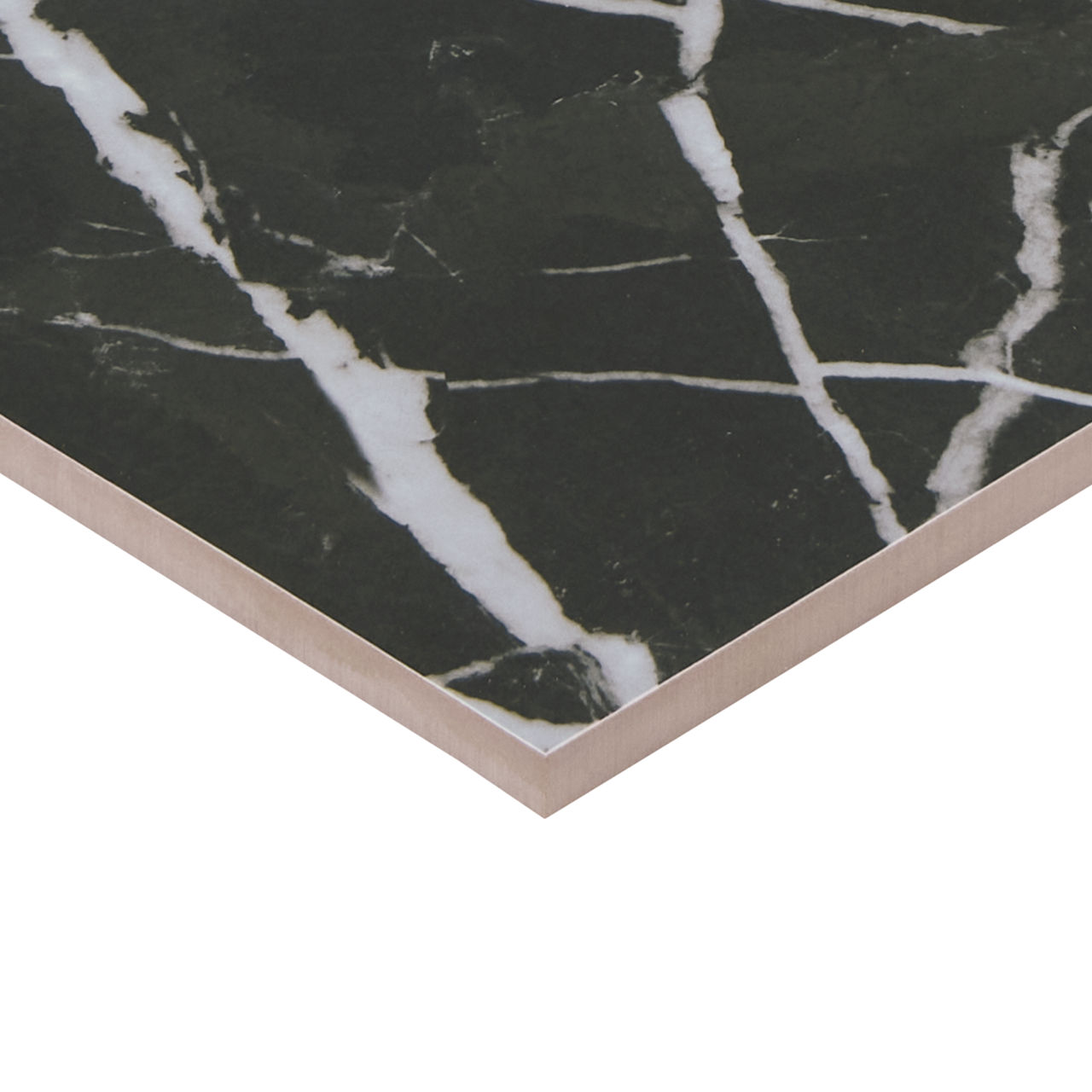

    Edge Rectified
    Shade Variation V3 HIGH VARIATION
    Pre-Consumer Recycled 0
    Post-Consumer Recycled 0

  • Application

    Countertop
    Countertop
    Floor
    Floor
    Wall
    Wall
    Target Dcof Wet Suitable
    Dry & Level - Interior Floor N/A ✔
    Wet & Level - Interior Floor ≥0.42
    Shower Floors (Residential or Light Commercial) ≥0.42
    Exterior Floor Applications (including pool decking & other wet areas with minimal footwear) ≥0.60
    Ramps & Inclines ≥0.65
    Walls/Backsplashes N/A ✔
    Countertops N/A ✔
    Pool Linings N/A
    1/8"

    ●  Manufacturer Advisory: All tile is measured by the DCOF AcuTestTM method. Tiles with DCOF values less than 0.42 are not recommended for use in areas with wet or slippery conditions. For more information, see ANSI standard A137.1 section 6.2.2.1.10, available at www.tileusa.com.

    No additional notes

  • Specifications

    Performance Chart
    Test Method Result
    Water Absorption ASTM C373 < 0.5
    Breaking Strength ASTM C648 > or equal to 275 lbf
    Scratch Hardness ASTM MOHS 7
    Chemical Resistance ASTM C650 Resistant
    Durability Chart - Floor Surface Wear Resistance
    1 - Residential Bathrooms
    2 - All Residential Areas
    3 - All Residential / Light Commercial
    4 - All Residential / Commercial
