Countertop | Floor | Wall

Dark Grey

Part of: Stone Attache TREAD Pavers Xteriors Program

Diplomacy

Diplomacy porcelain tile deftly delivers the quiet strength and visual beauty of quarried Belgian bluestone. Diplomacy is available in three stone look smoky hues that come alive with movement created by delicate highlights of light greys and whites.

  • Additional Colors

Available Shapes and Sizes

: DP03
: 3/8

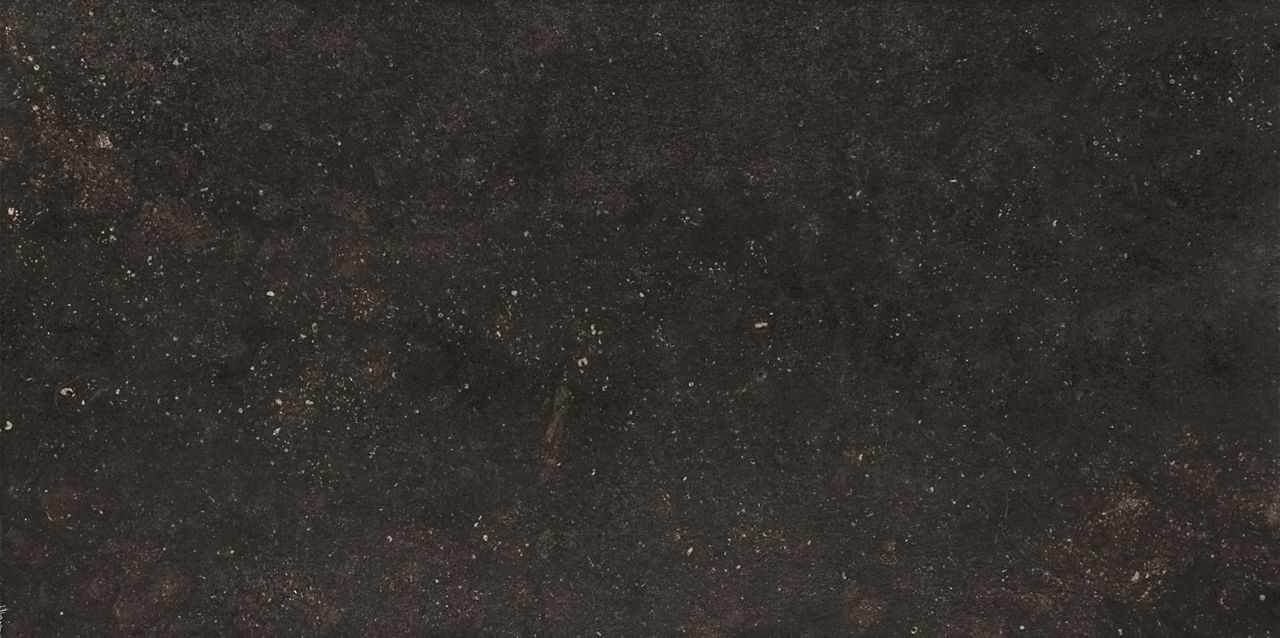

: 12X24, 24X48
: Matte
: V2: Medium
: Italy
: DP03
: 13/16

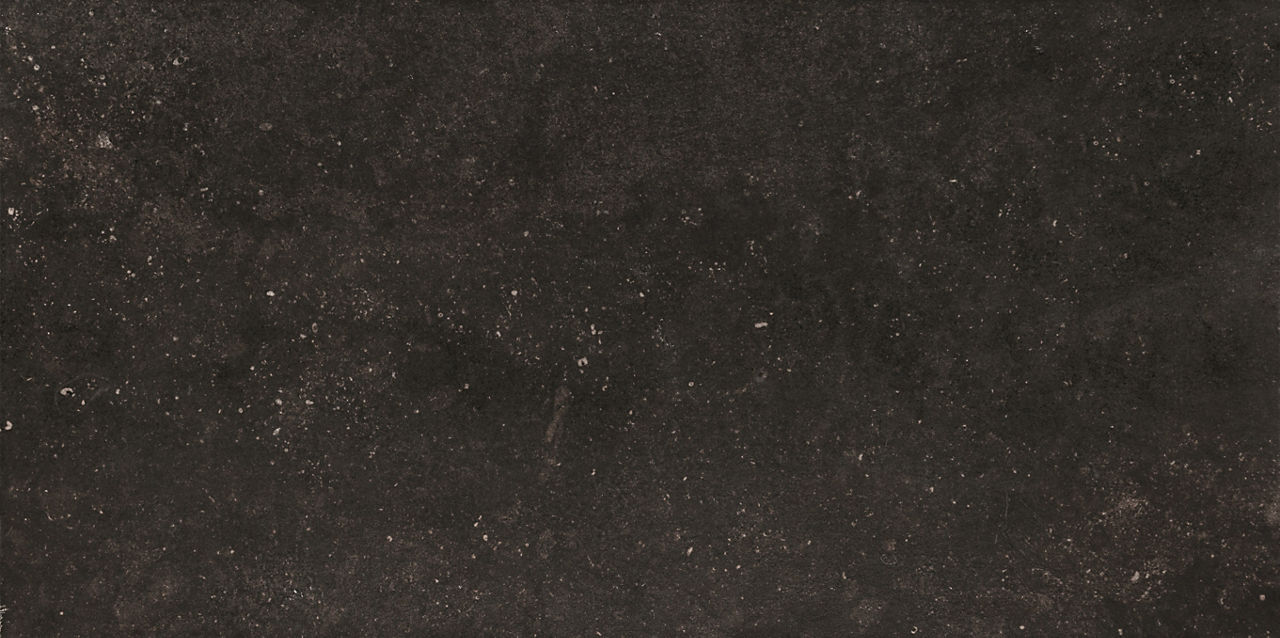

: 20X40
: Textured
: V2: Medium
: Italy
: DP03
: 3/8

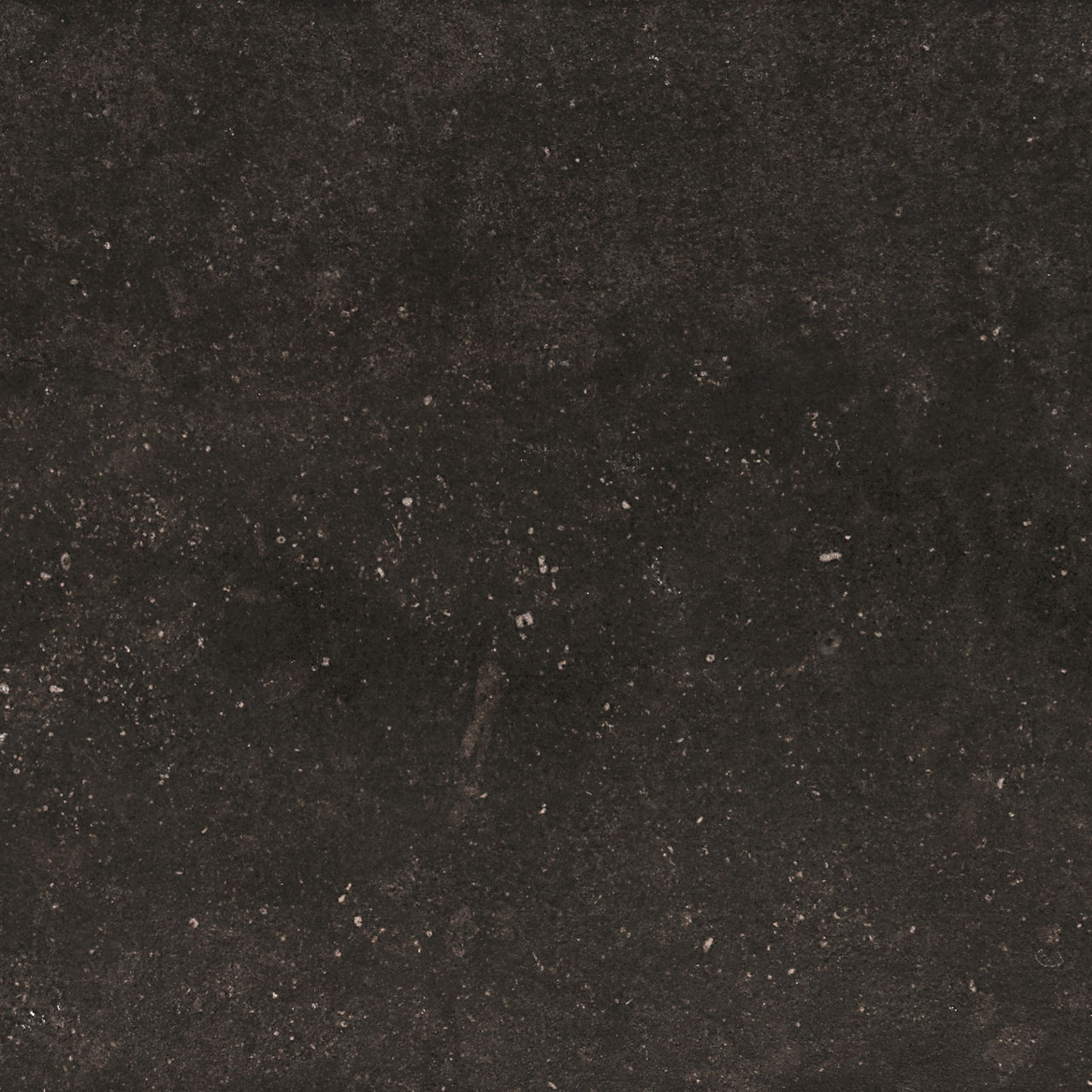

: 24X24
: Matte
: V2: Medium
: Italy
: DP03
: 3/8
: 5/8X1
: Matte
: V2: Medium
: Italy
  • Application
    Target Dcof Wet Suitable
    Dry & Level - Interior Floor N/A
    Wet & Level - Interior Floor ≥0.42
    Shower Floors (Residential or Light Commercial) ≥0.42
    Exterior Floor Applications (including pool decking & other wet areas with minimal footwear) ≥0.60
    Ramps & Inclines ≥0.65
    Walls/Backsplashes N/A
    Countertops N/A
    Pool Linings N/A
    1/8"

    ●  A DCOF value of greater than or equal to 0.42 is the standard for tiles specified for level interior spaces expected to be walked upon when wet, as stated in ANSI A137.1-A326.3. For more information about DCOF and the DCOF AcuTest™, visit daltile.com/DCOF.

    ●  Manufacturer Advisory: All tile is measured by the DCOF AcuTestTM method. Tiles with DCOF values less than 0.42 are not recommended for use in areas with wet or slippery conditions. For more information, see ANSI standard A137.1 section 6.2.2.1.10, available at www.tileusa.com.

    ●  Suitable for exterior applications in freezing and non-freezing climates, when proper installation methods are followed.

  • Technical Specifications
    Test Method Floor Tile Mosaic Tile
    Water Absorption ASTM C373 < 0.5 < 0.5
    Breaking Strength ASTM C648 > 300 lbs > 1000 lbs
    Scratch Hardness ASTM MOHS 8 8
    Chemical Resistance ASTM C650 Resistant Resistant
  • Durability Chart
    Floor Surface Wear Resistance
    1 - Residential Bathrooms
    2 - All Residential Areas
    3 - All Residential / Light Commercial
    4 - All Residential / Commercial

Available Trim (3)

Bullnose
Bullnose
3X24
Shape Number: S43F9

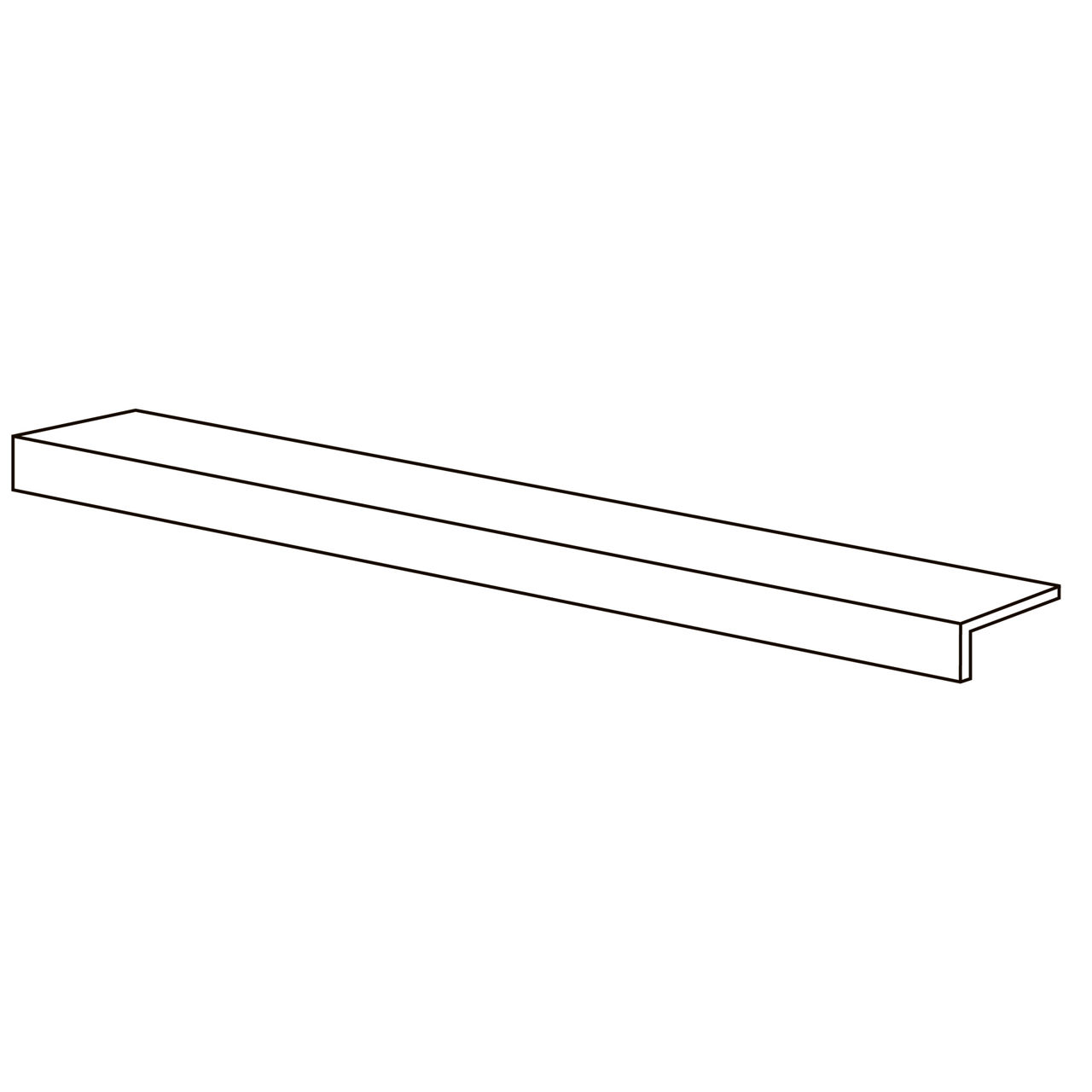

Coping (6cm Return)
Coping (6cm Return)
12X20
Shape Number: 1220C6

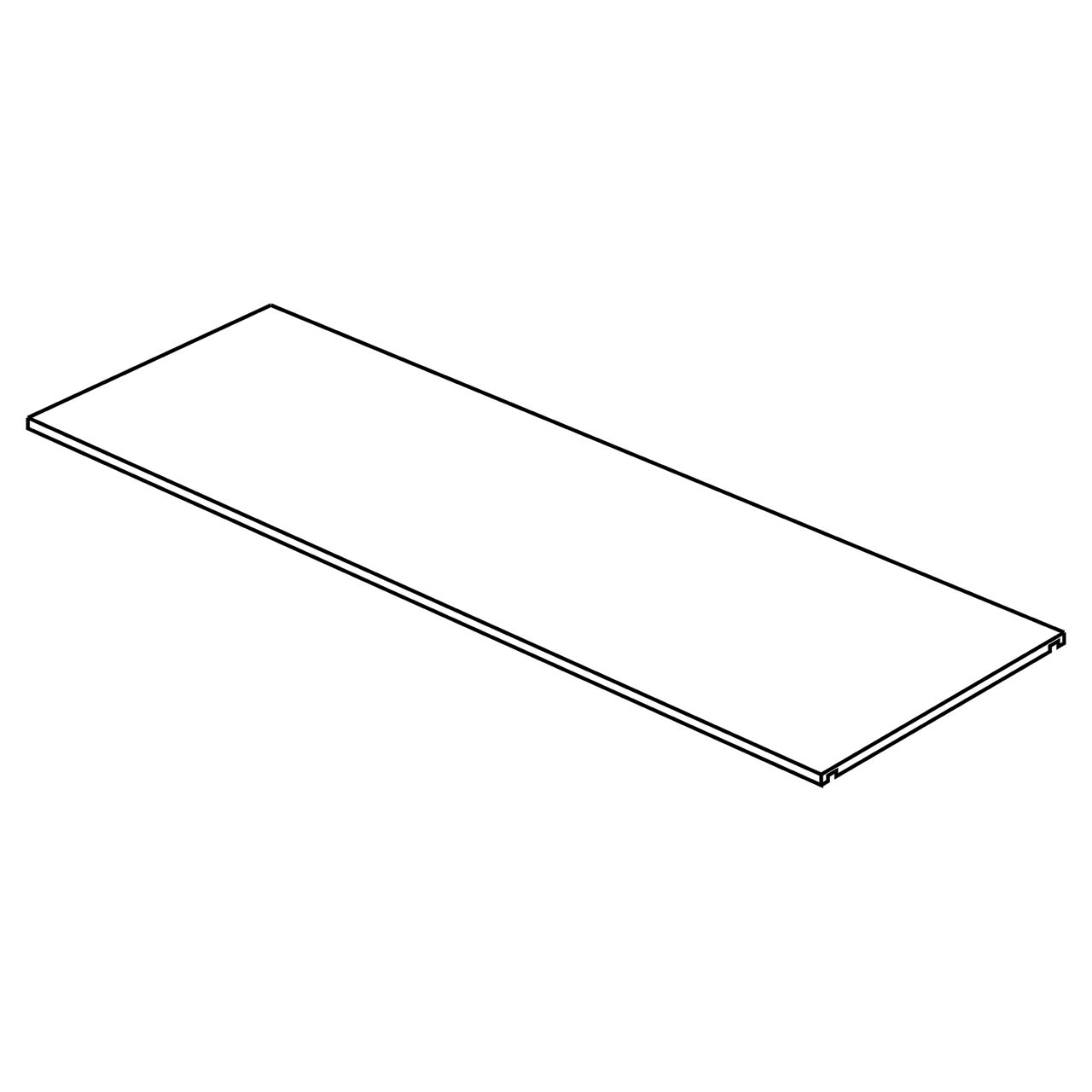

Step Nose
Step Nose
20X20
Shape Number: 2020S
