Countertop | Floor | Wall
Medium Grey
Part of: Stone Attache TREAD Pavers Xteriors Program
Diplomacy
Diplomacy porcelain tile deftly delivers the quiet strength and visual beauty of quarried Belgian bluestone. Diplomacy is available in three stone look smoky hues that come alive with movement created by delicate highlights of light greys and whites.
Roll over image to zoom
Additional Colors
Available Shapes and Sizes
:
DP02
:
3/8
:
12X24, 24X48
:
Matte
:
V2: Medium
:
Italy
:
DP02
:
3/8
:
24X24
:
Matte
:
V2: Medium
:
Italy
:

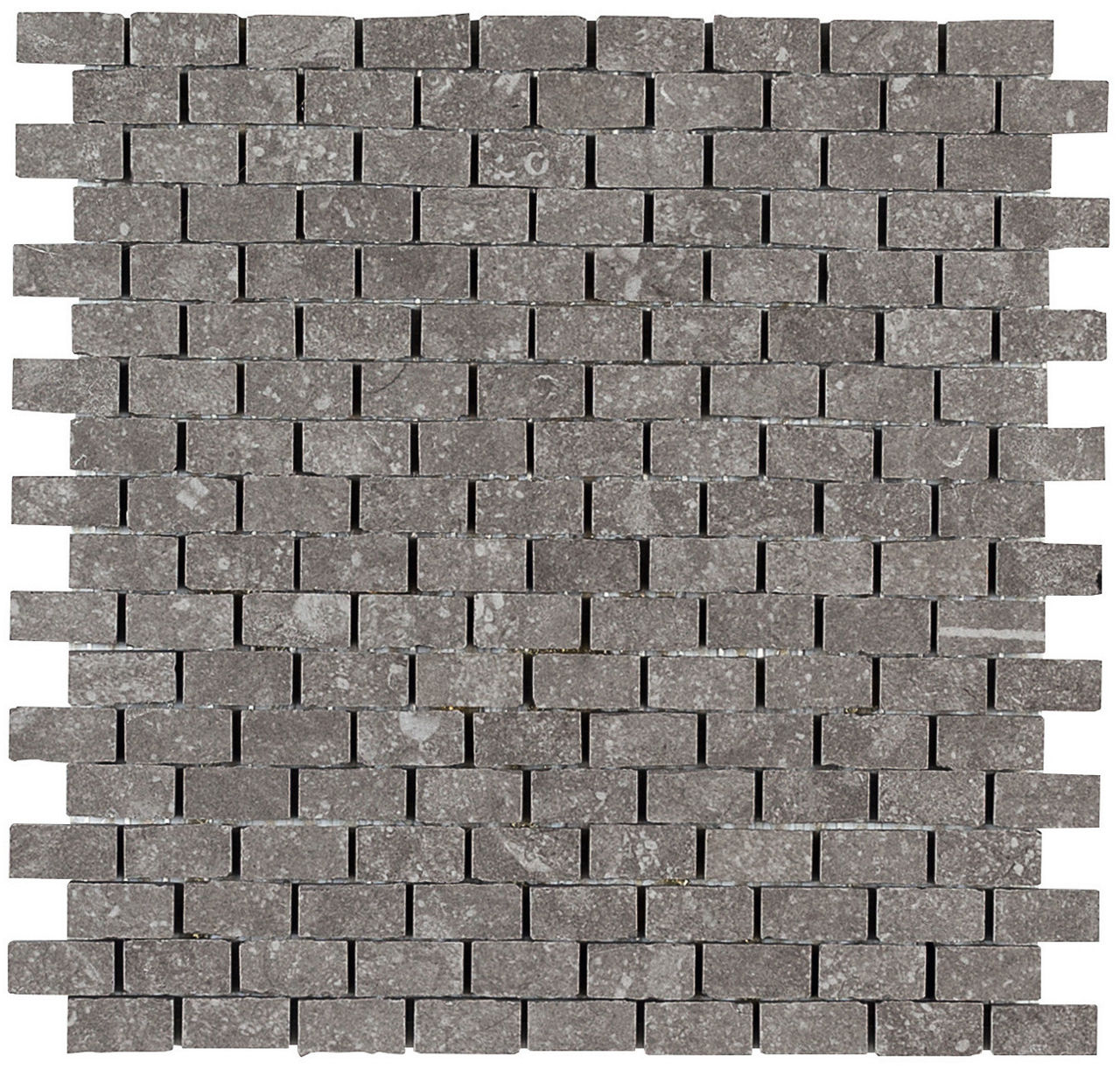

DP02
:
3/8
:
5/8X1
:
Matte
:
V2: Medium
:
Italy
Application
| Target Dcof Wet | Suitable | |
|---|---|---|
| Dry & Level - Interior Floor | N/A | ✔ |
| Wet & Level - Interior Floor | ≥0.42 | ✔ |
| Shower Floors (Residential or Light Commercial) | ≥0.42 | ✔ |
| Exterior Floor Applications (including pool decking & other wet areas with minimal footwear) | ≥0.60 | ✔ |
| Ramps & Inclines | ≥0.65 | |
| Walls/Backsplashes | N/A | ✔ |
| Countertops | N/A | ✔ |
| Pool Linings | N/A | |
| 1/8" | ||
|
● A DCOF value of greater than or equal to 0.42 is the standard for tiles specified for level interior spaces expected to be walked upon when wet, as stated in ANSI A137.1-A326.3. For more information about DCOF and the DCOF AcuTest™, visit daltile.com/DCOF. |
||
|
No additional notes |
||
Technical Specifications
| Test Method | Floor Tile | Mosaic Tile | |
|---|---|---|---|
| Water Absorption | ASTM C373 | < 0.5 | < 0.5 |
| Breaking Strength | ASTM C648 | > 300 lbs | > 1000 lbs |
| Scratch Hardness | ASTM MOHS | 8 | 8 |
| Chemical Resistance | ASTM C650 | Resistant | Resistant |
Durability Chart
| Floor Surface Wear Resistance |
|---|
| 1 - Residential Bathrooms |
| 2 - All Residential Areas |
| 3 - All Residential / Light Commercial |
| 4 - All Residential / Commercial |
Available Trim (1)
Bullnose
3X24
Shape Number: S43F9
