Keystones

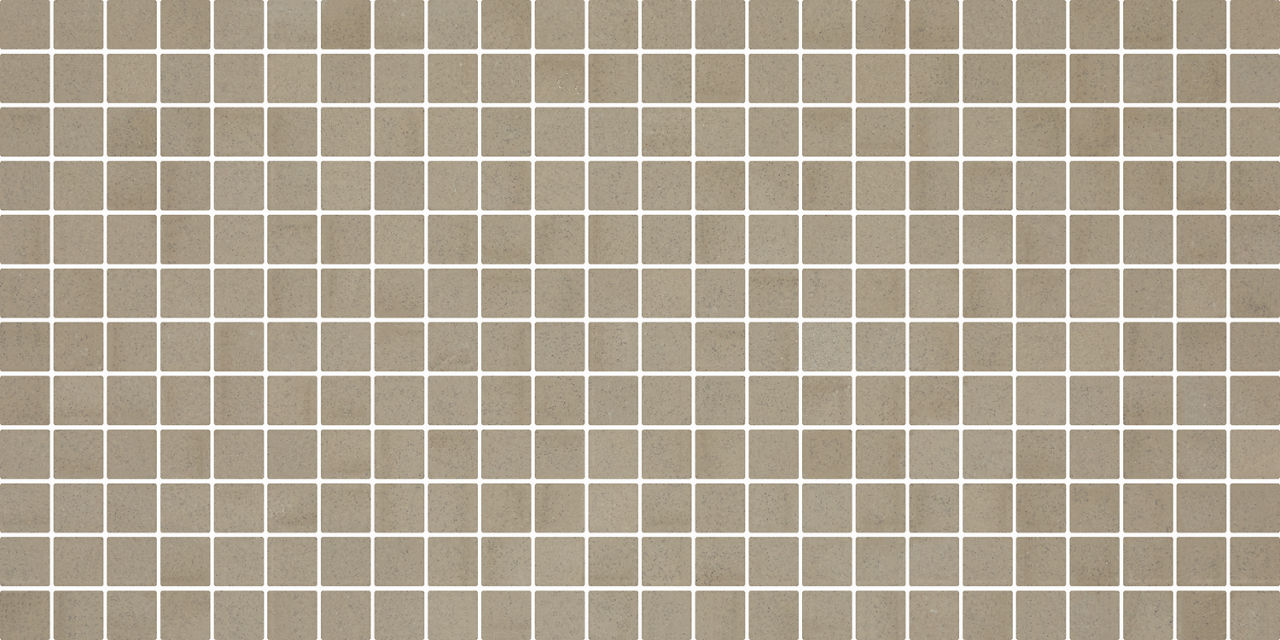

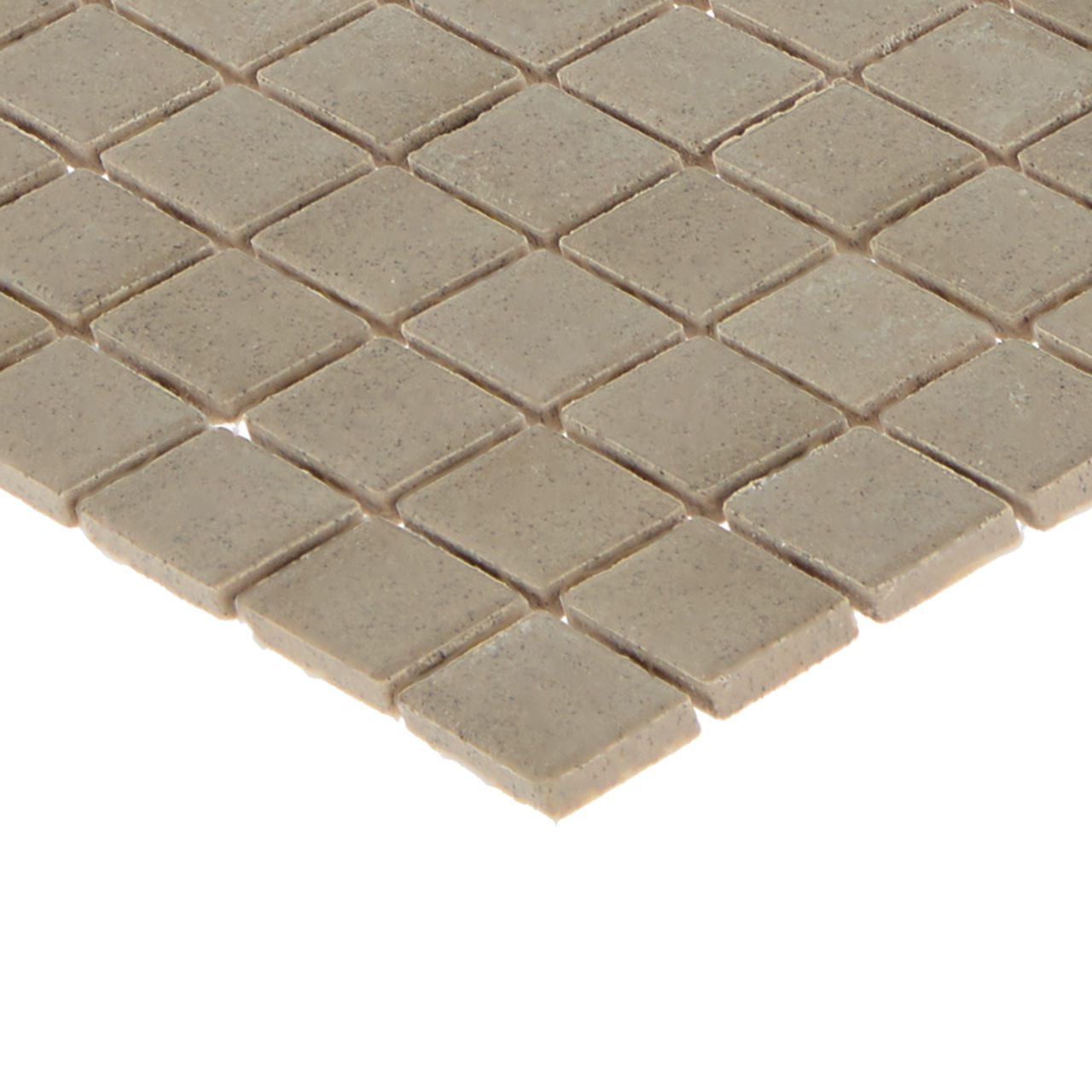

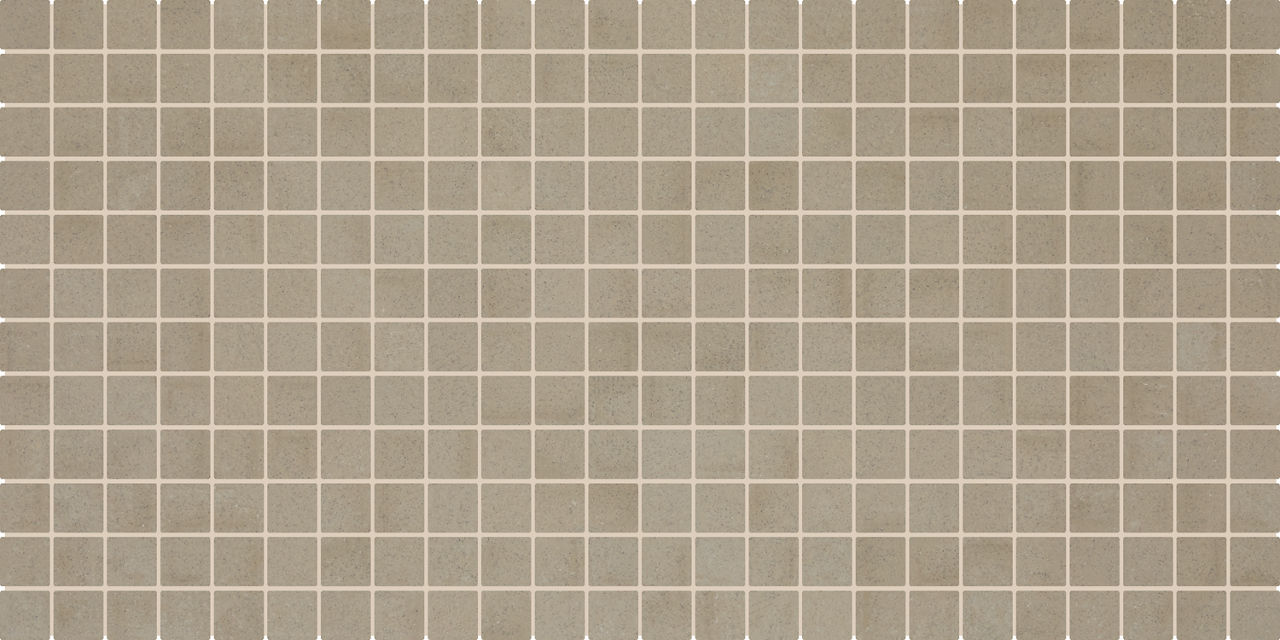

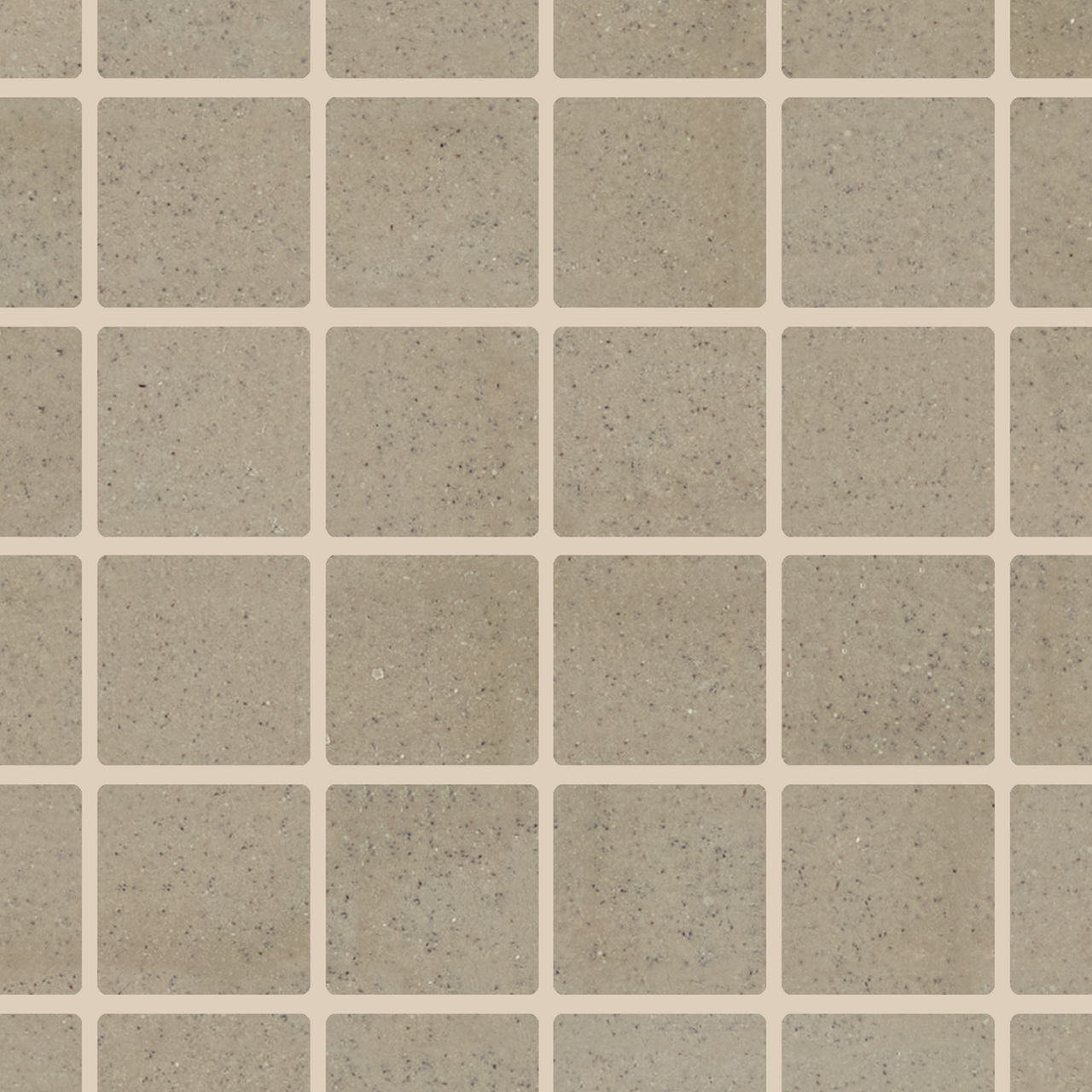

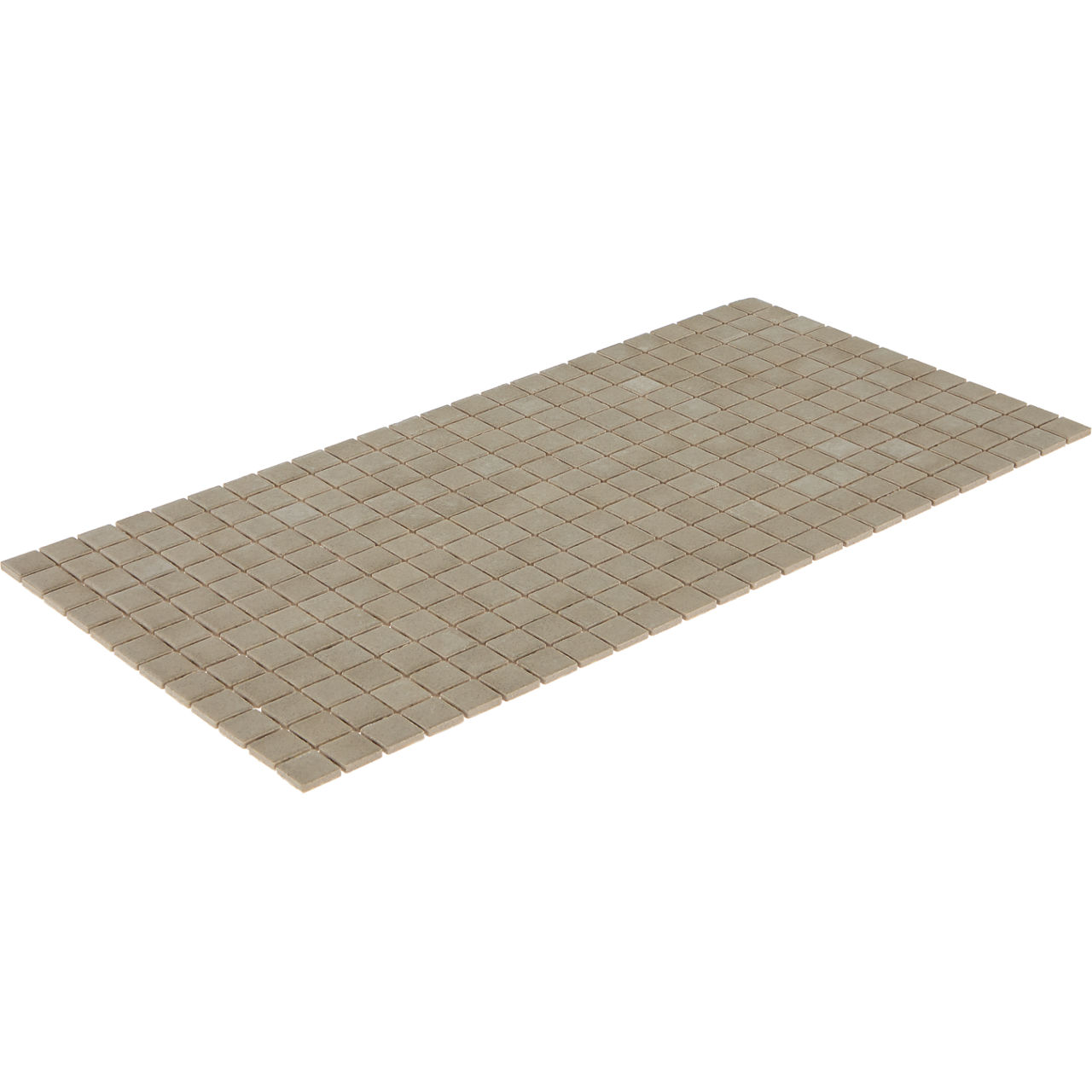

Architect Gray Straight Joint 1X1 Abrasive
Architect Gray straight joint mosaic porcelain tile 1x1 combines versatile gray tones with an abrasive finish, bringing the textural rhythm of the straight joint mosaic visual to the surface. It suits backsplashes, dry interior areas, and wet interior areas in feature walls, boutique backsplashes, and expressive modern spaces, especially alongside polished chrome fixtures, glass accents, and soft neutral upholstery, for a surface that balances good looks with everyday practicality.
Countertop
Floor
Wall
Exterior Floor
Shower Floor
Still Deciding?
Special Features
Made in the USA
For a full list of colors, visit https://www.daltile.com/products/mosaic/keystones/architect-gray-straight-joint-1x1-abrasive
COORDINATING TRIMS
Bullnose
Size : 2X2
Shape: S886
Bullnose Corner
Size : 2X2
Shape: SC886
Cove Base
Size : 2X2
Shape: C833
Cove Base Outcorner
Size : 2X1
Shape: SCL833
Cove BC
Size : 1X1
Shape: CK813
Universal Trim
Size : 1X1
Shape: S812
Universal Trim
Size : 2X2
Shape: SC813
For a full list of coordinating trim options, visit https://www.daltile.com/products/mosaic/keystones/architect-gray-straight-joint-1x1-abrasive
Overview
Architect Gray straight joint mosaic porcelain tile 1x1 pairs versatile gray tones with an abrasive finish, echoing the textural rhythm of the straight joint mosaic visual. It suits backsplashes, dry interior areas, and wet interior areas.
Design Note
For feature walls, boutique backsplashes, and expressive modern spaces, Architect Gray pairs well with polished chrome fixtures, glass accents, and soft neutral upholstery, its versatile gray tones softening the abrasive finish. It suits backsplashes, dry interior areas, and wet interior areas for a grounded and versatile result.
-
Product Details
Collection Name Keystones Color Code D109 Color Name Architect Gray Color Family Gray Nominal Size 1X1 Actual Size 12.000 X 24.000 Nominal Thickness 1/4 Nominal Mounted Sheet Size 12x24 Mount Method Dot Mount Size Category Small Country of Origin United States Finish Abrasive Body Type Unglazed Mosaic Edge Non Rectified Mosaic Pattern Straight Joint Shade Variation V2 MEDIUM VARIATION Pre-Consumer Recycled 39.1 Post-Consumer Recycled 12.6
-
Application
Countertop
Floor
Wall
Exterior Floor
Shower FloorTarget Dcof Wet Suitable Dry & Level - Interior Floor N/A ✔ Wet & Level - Interior Floor ≥0.42 ✔ Shower Floors (Residential or Light Commercial) ≥0.42 ✔ Exterior Floor Applications (including pool decking & other wet areas with minimal footwear) ≥0.60 ✔ Ramps & Inclines ≥0.65 Walls/Backsplashes N/A ✔ Countertops N/A ✔ Pool Linings N/A ✔ 1/8" ● A DCOF value of greater than or equal to 0.42 is the standard for tiles specified for level interior spaces expected to be walked upon when wet, as stated in ANSI A137.1-A326.3. For more information about DCOF and the DCOF AcuTest™, visit daltile.com/DCOF.
No additional notes
-
Specifications
Performance Chart Test Method Result Water Absorption ASTM C373 < 0.5 Breaking Strength ASTM C648 > or equal to 250 lbf Scratch Hardness ASTM MOHS 8 Chemical Resistance ASTM C650 Resistant
-
Download Tear Sheet
Architect Gray Straight Joint 1X1 Abrasive
View PDF
-
Special Features
Special Features
Made in the USA
