Keystones

Architect Gray Oval Straight Joint 2X1 Matte

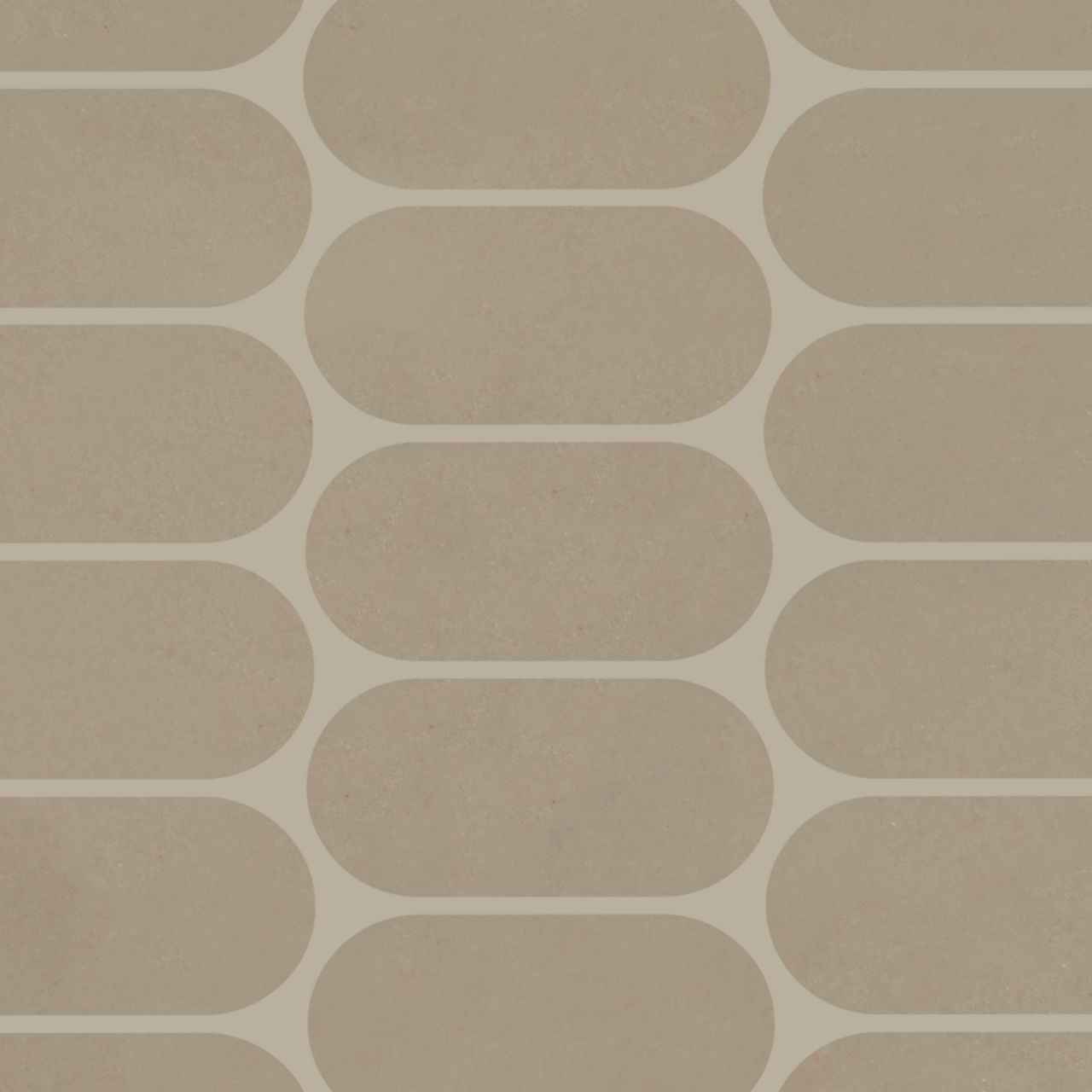

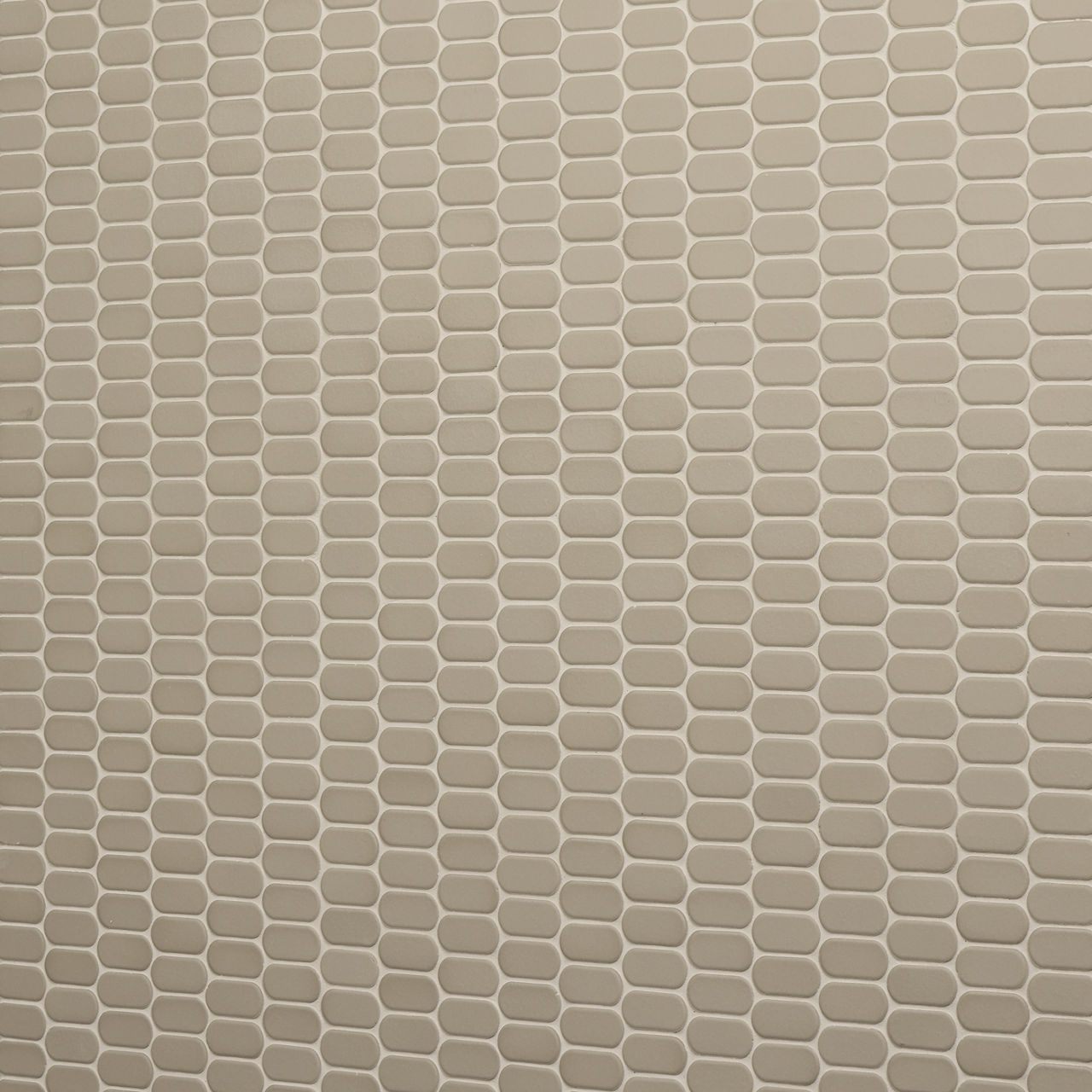

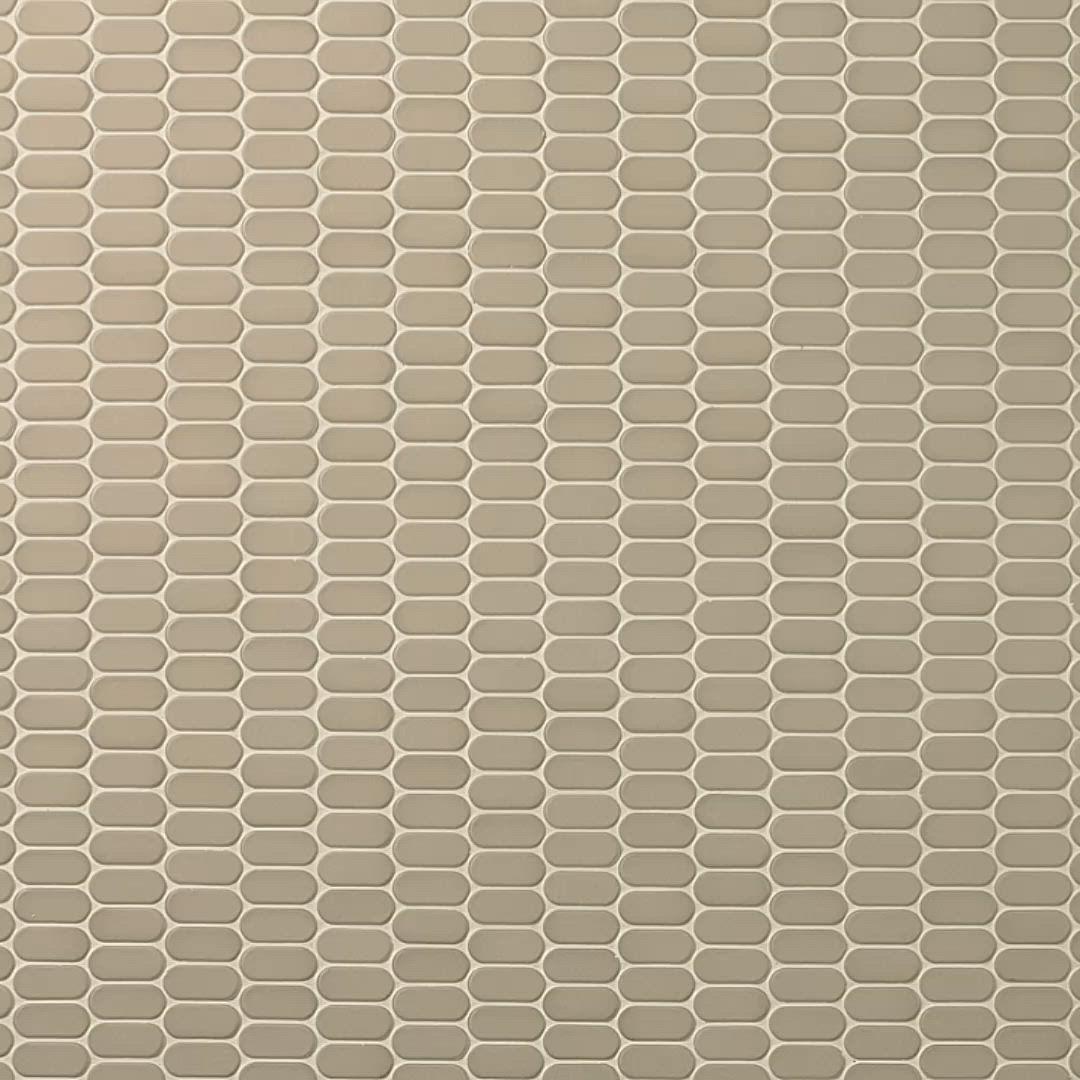

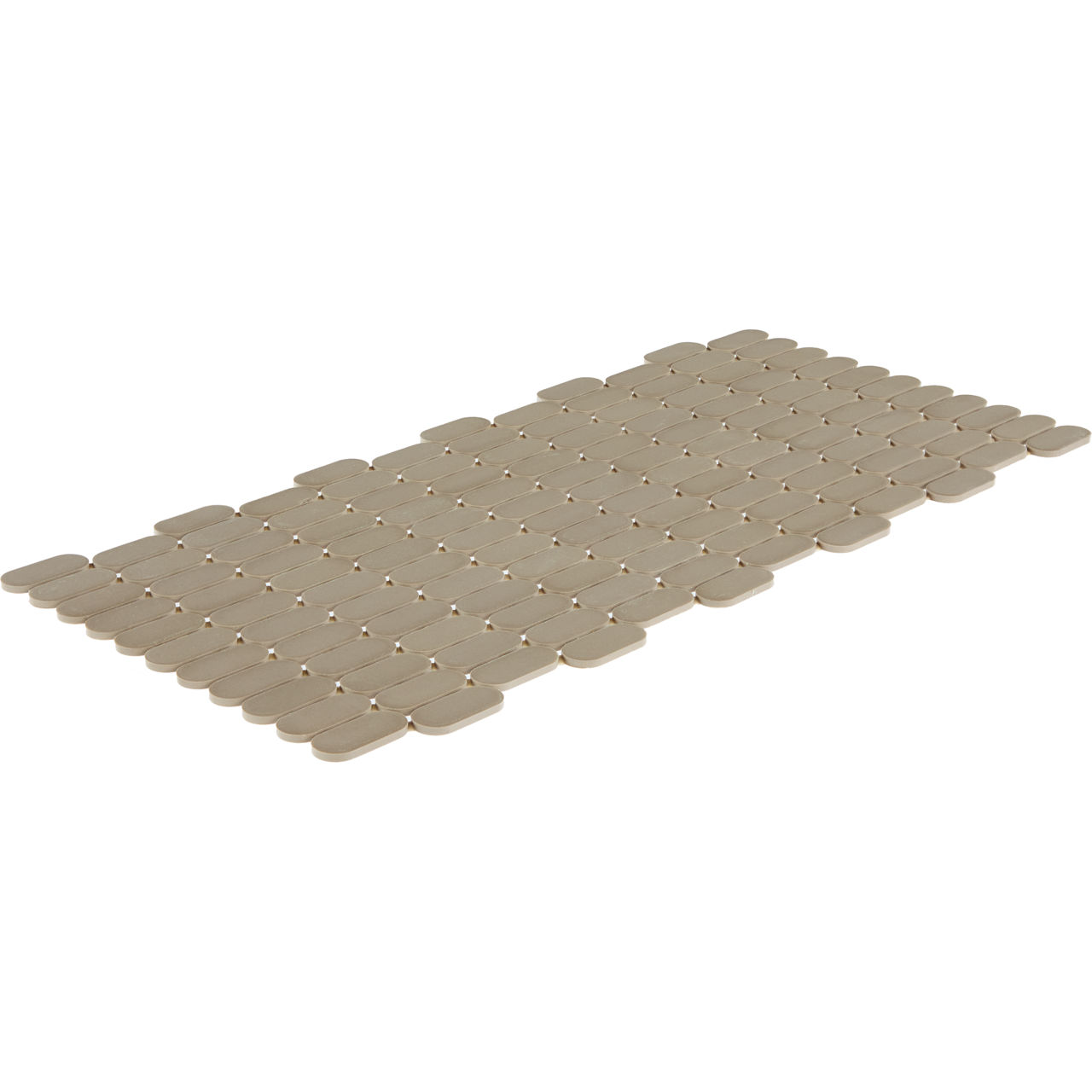

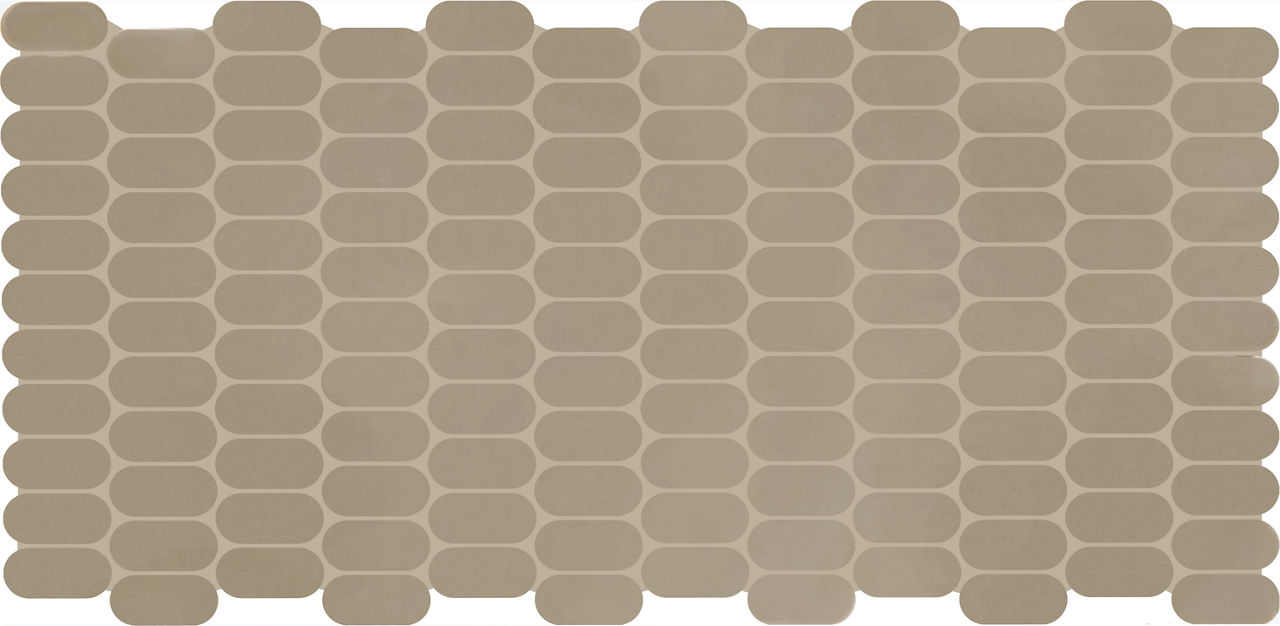

A deep warm tan with subtle mottling gives Architect Gray real weight in a 2x1 matte ColorBody porcelain oval mosaic.
Countertop
Countertop
Floor
Floor
Wall
Wall
Exterior Floor
Exterior Floor
Shower Floor
Shower Floor
Where To Buy
Still Deciding?
Request a FREE design appointment with one of our experts!
Special Features
Made in the USA Made in the USA
Other Mosaic Patterns
Architect Gray Brick Joint 2X1 Matte Brick Joint | Matte
Architect Gray Brick Joint 2X1 Matte 2X1 | Matte
Architect Gray 2x2 Porcelain | Keystones by Daltile Hexagon | Matte
Architect Gray 2x2 Porcelain | Keystones by Daltile 2X2 | Matte
Architect Gray Penny Rounds Porcelain | Keystones by Daltile Penny Rounds | Matte
Architect Gray Penny Rounds Porcelain | Keystones by Daltile Penny Rounds | Matte
Architect Gray 1x1 Porcelain | Keystones by Daltile Straight Joint | Abrasive
Architect Gray 1x1 Porcelain | Keystones by Daltile 1X1 | Abrasive
Architect Gray 1x1 Porcelain | Keystones by Daltile Straight Joint | Matte
Architect Gray 1x1 Porcelain | Keystones by Daltile 1X1 | Matte
Other Available Colors
Almond 2x1 Matte Oval Mosaic | Keystones by Daltile D335
Almond 2x1 Matte Oval Mosaic | Keystones by Daltile Almond | D335
Arctic White 2x1 Matte Oval Mosaic | Keystones by Daltile D617
Arctic White 2x1 Matte Oval Mosaic | Keystones by Daltile Arctic White | D617
Black Ebony 2x1 Matte Oval Mosaic | Keystones by Daltile D311
Black Ebony 2x1 Matte Oval Mosaic | Keystones by Daltile Black/Ebony | D311
Cypress 2x1 Matte Oval Mosaic | Keystones by Daltile D452
Cypress 2x1 Matte Oval Mosaic | Keystones by Daltile Cypress | D452
Desert Gray 2x1 Matte Oval Mosaic | Keystones by Daltile D014
Desert Gray 2x1 Matte Oval Mosaic | Keystones by Daltile Desert Gray | D014
Marble 2x1 Matte Oval Mosaic | Keystones by Daltile D325
Marble 2x1 Matte Oval Mosaic | Keystones by Daltile Marble | D325
Suede Gray 2x1 Matte Oval Mosaic | Keystones by Daltile D182
Suede Gray 2x1 Matte Oval Mosaic | Keystones by Daltile Suede Gray | D182
Urban Putty 2x1 Matte Oval Mosaic | Keystones by Daltile D161
Urban Putty 2x1 Matte Oval Mosaic | Keystones by Daltile Urban Putty | D161
Waterfall 2x1 Matte Oval Mosaic | Keystones by Daltile D169
Waterfall 2x1 Matte Oval Mosaic | Keystones by Daltile Waterfall | D169
For a full list of colors, visit https://www.daltile.com/products/mosaic/keystones/architect-gray-oval-straight-joint-2x1-matte
COORDINATING TRIMS
Bullnose
Bullnose
Size : 2X2
Shape: S886
Bullnose Corner
Bullnose Corner
Size : 2X2
Shape: SC886
Cove Base
Cove Base
Size : 2X2
Shape: C833
Cove Base Outcorner
Cove Base Outcorner
Size : 2X1
Shape: SCL833
Cove BC
Cove BC
Size : 1X1
Shape: CK813
Universal Trim
Universal Trim
Size : 1X1
Shape: S812
Universal Trim
Universal Trim
Size : 2X2
Shape: SC813
For a full list of coordinating trim options, visit https://www.daltile.com/products/mosaic/keystones/architect-gray-oval-straight-joint-2x1-matte
Download Tear Sheet

Overview

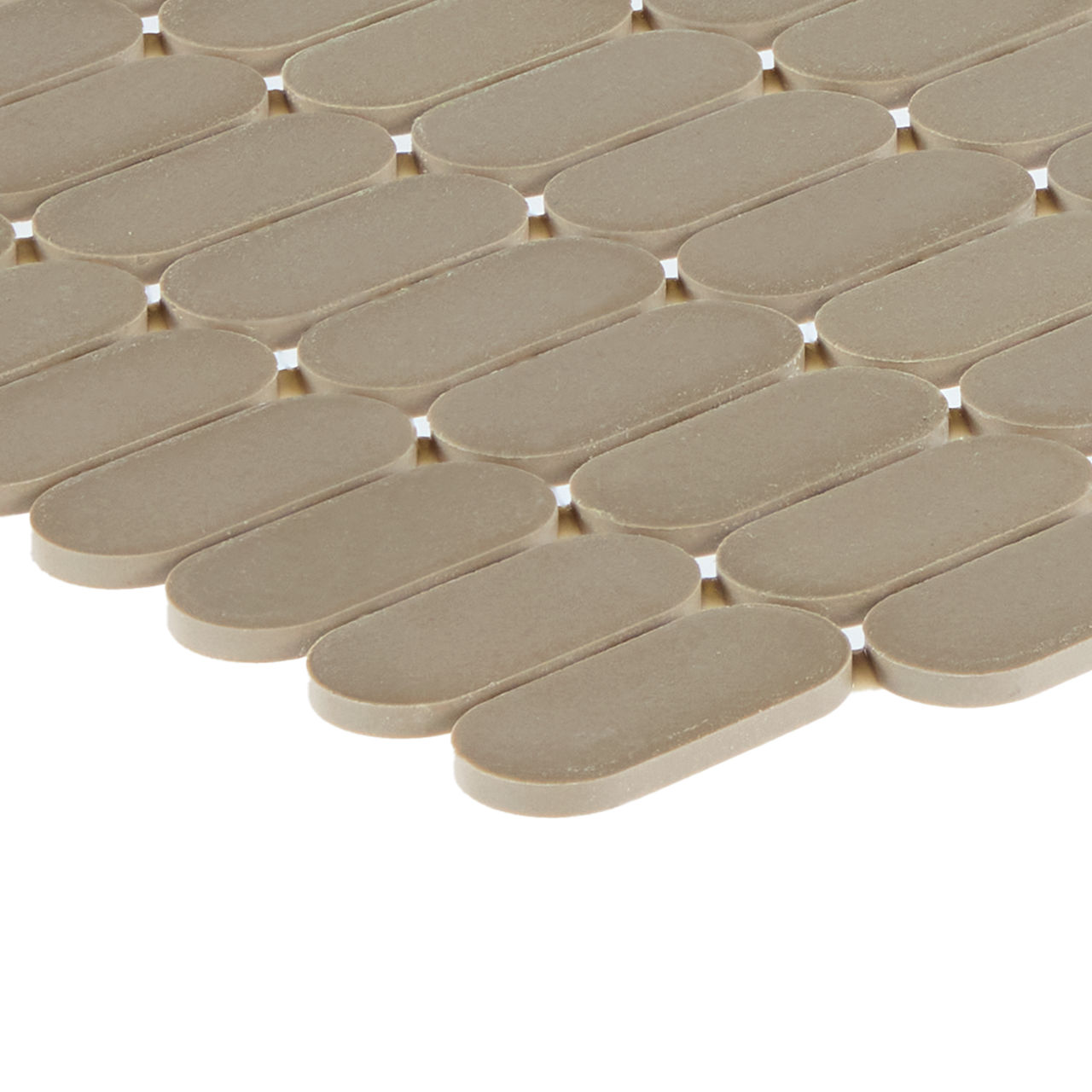

Despite its name, Architect Gray leans warm and dark rather than neutral, closer to a grounded taupe than a true gray. The 2x1 oval shape, set on a 12"x22" sheet in matte ColorBody porcelain, holds that depth consistently from piece to piece, since the color is solid through the body rather than applied as a glaze. Available suitability for wet floor, shower, and submerged applications makes it a workable choice beyond dry interior rooms.

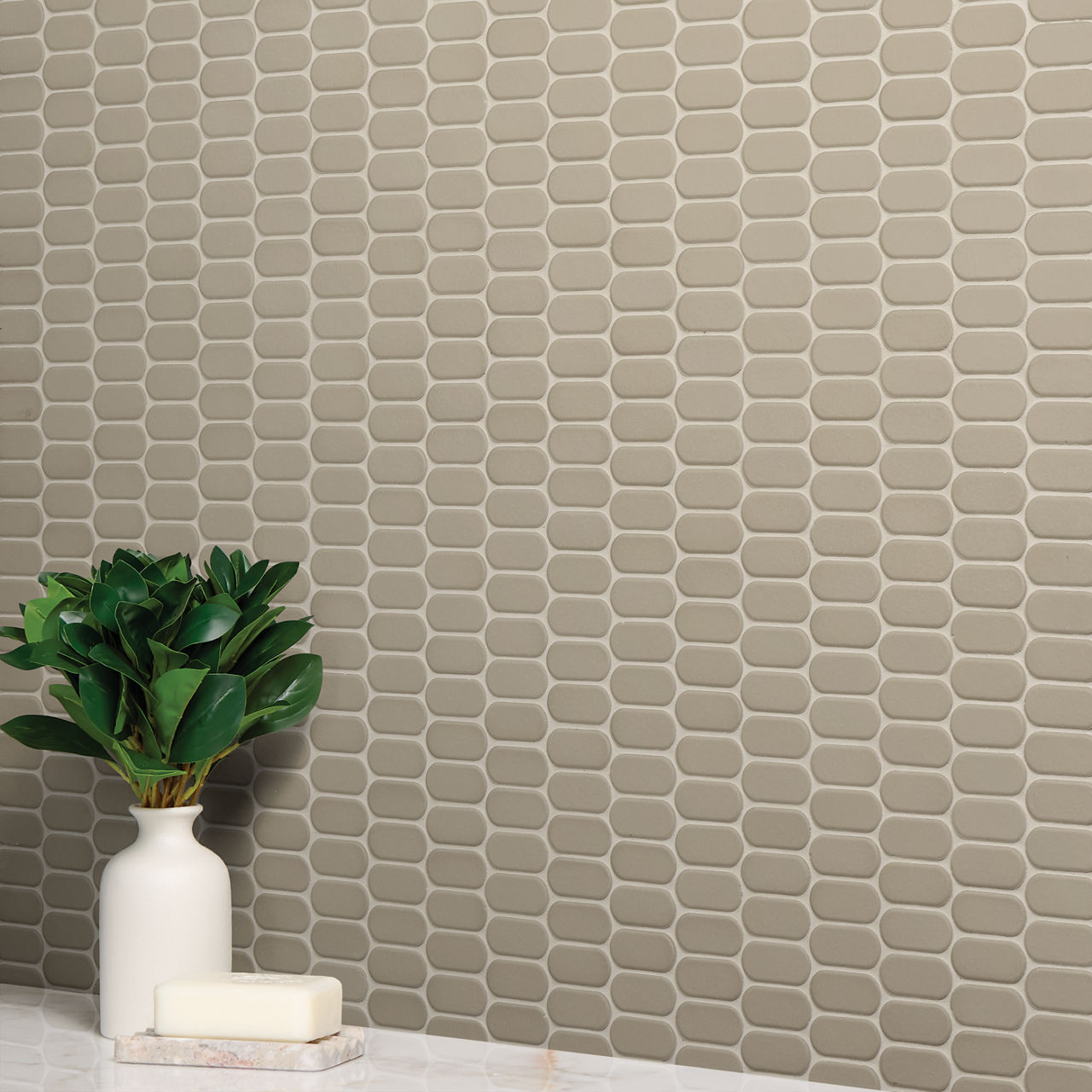

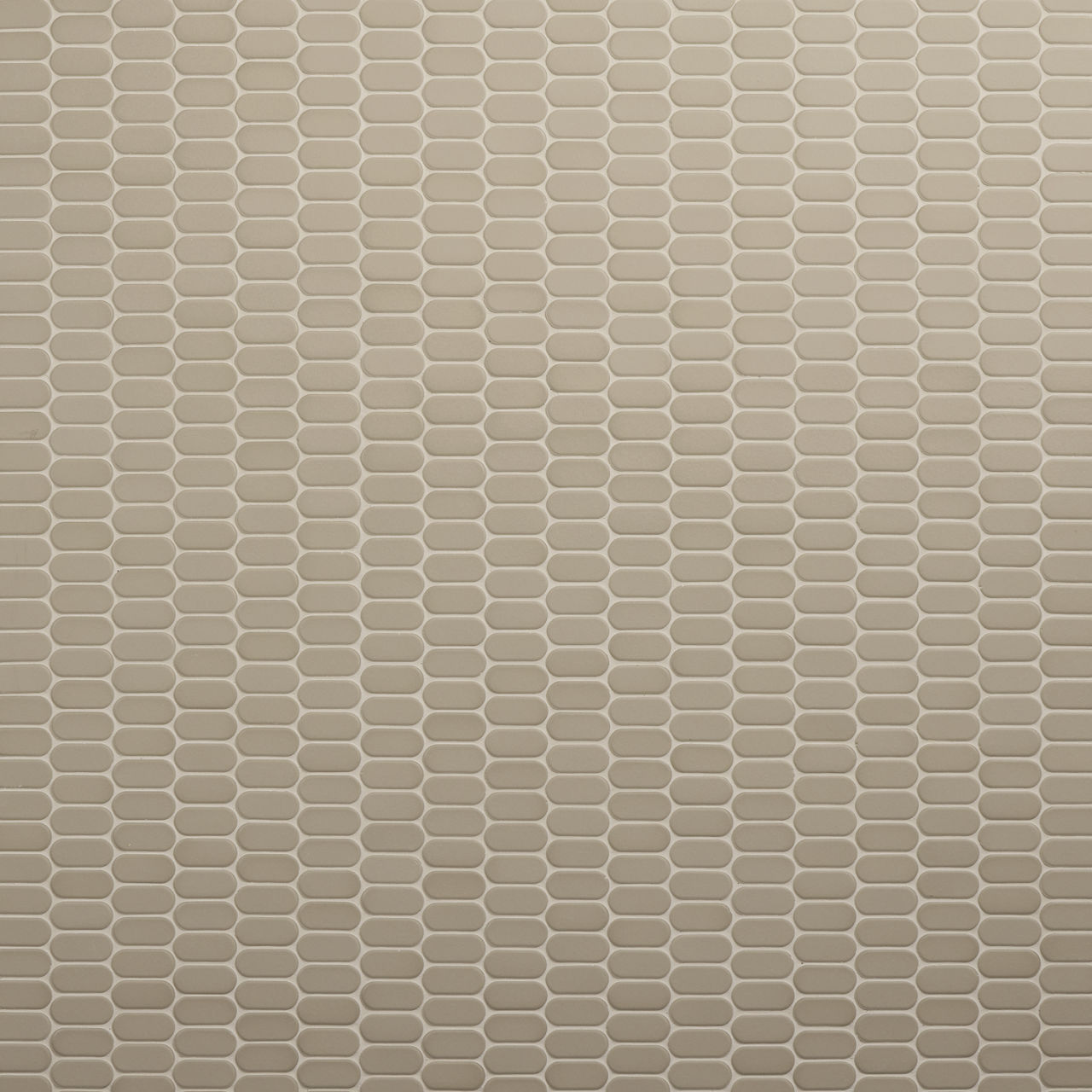

DAL_D109_2x1_Oval_Msc_ArchitectGray_MT_LivePanel_Prop
×
Size:
Finish:
View in a Room
View more details

Design Note

This is the color to reach for when a space calls for contrast rather than a blend. Its saturation and depth give a room an anchor rather than a backdrop.

  • Product Details

    Collection Name Keystones
    Color Code D109
    Color Name Architect Gray
    Color Family Gray
    Nominal Size 2X1
    Actual Size 12.000 X 22.000
    Nominal Thickness 1/4

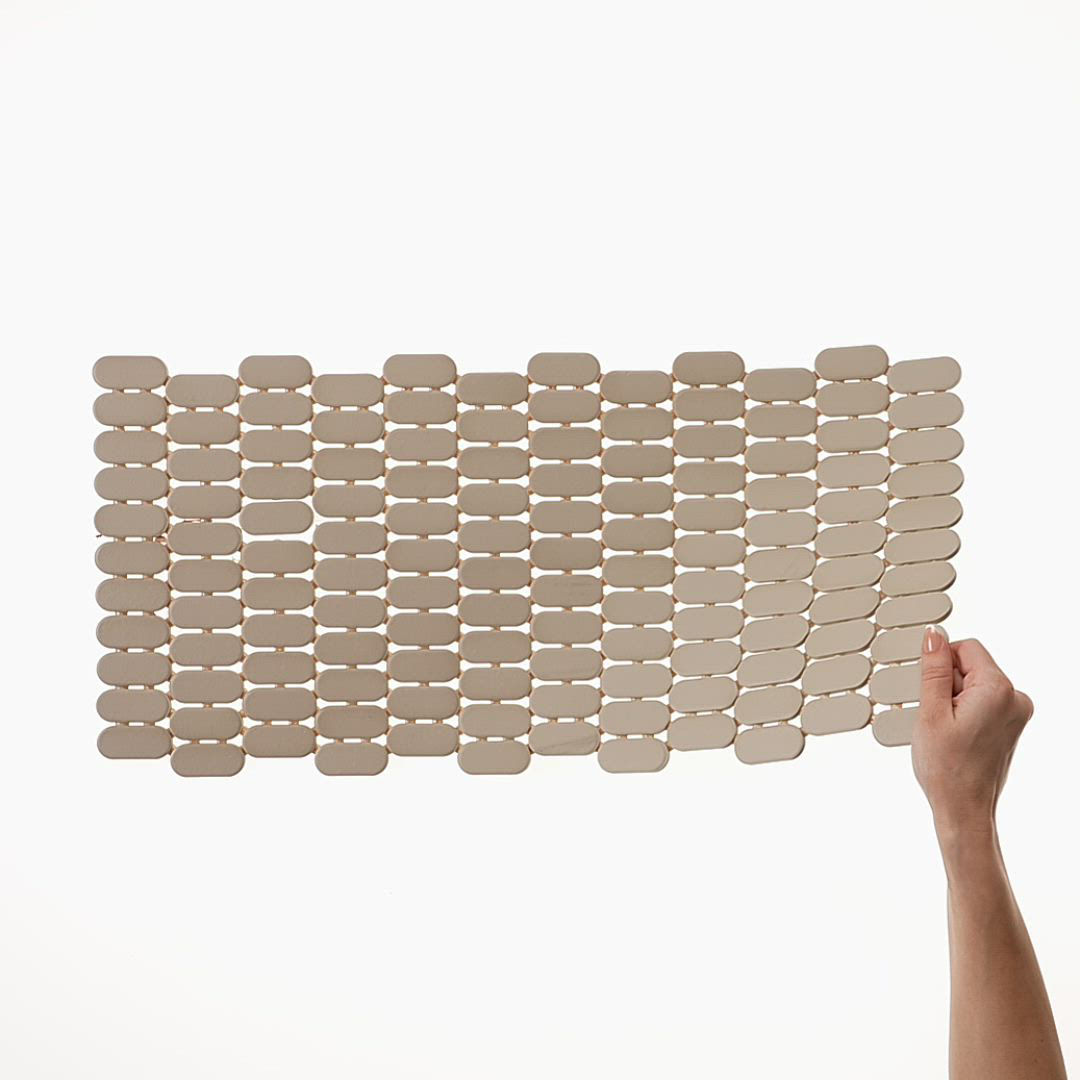

    Nominal Mounted Sheet Size 12x22
    Mount Method Dot Mount
    Size Category Small
    Country of Origin United States
    Finish Matte
    Body Type Unglazed Mosaic
    Edge Non Rectified
    Mosaic Pattern Oval Straight Joint
    Shade Variation V1 LOW VARIATION
    Pre-Consumer Recycled 12.0
    Post-Consumer Recycled 0

  • Application

    Countertop
    Countertop
    Floor
    Floor
    Wall
    Wall
    Exterior Floor
    Exterior Floor
    Shower Floor
    Shower Floor
    Target Dcof Wet Suitable
    Dry & Level - Interior Floor N/A ✔
    Wet & Level - Interior Floor ≥0.42 ✔

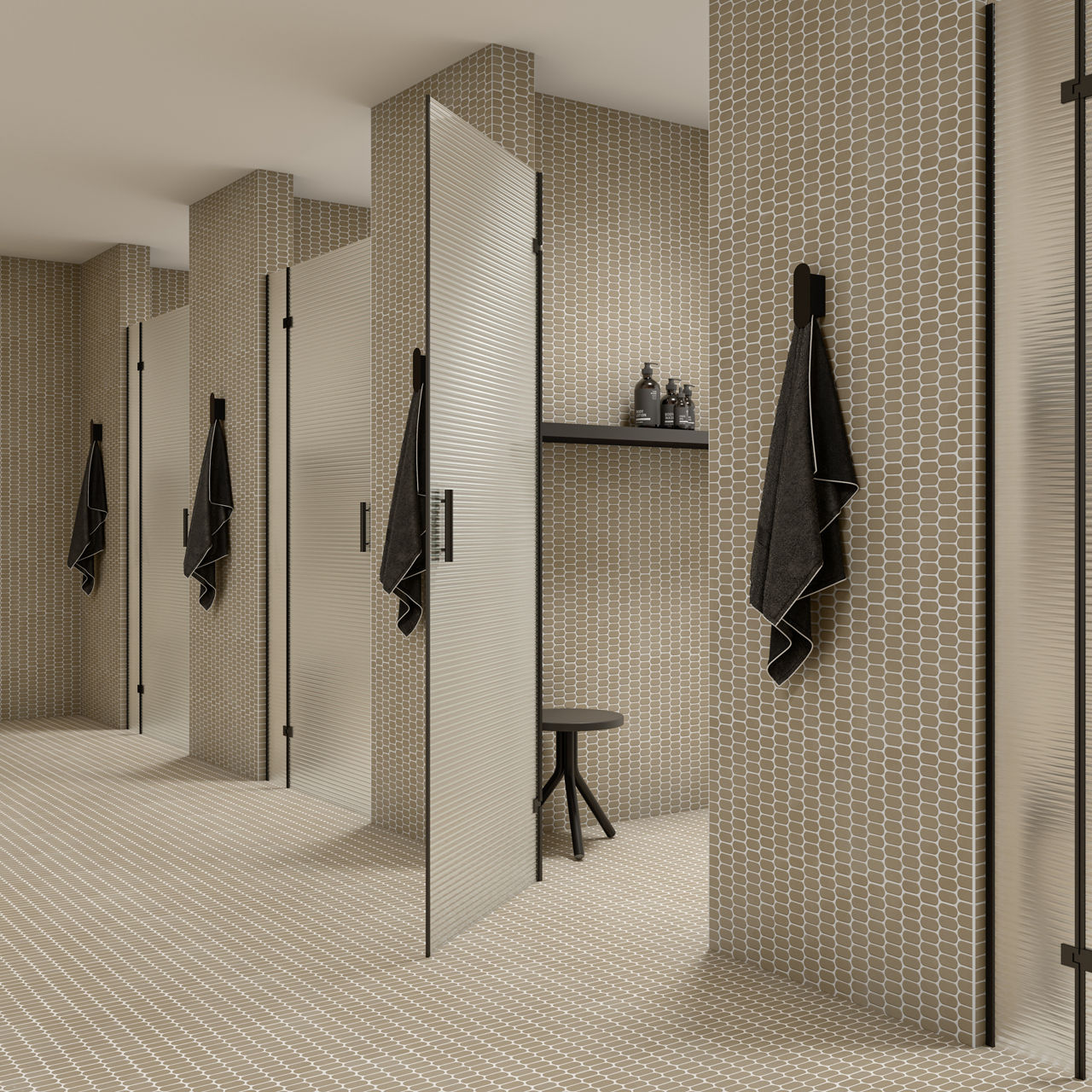

    Shower Floors (Residential or Light Commercial) ≥0.42 ✔

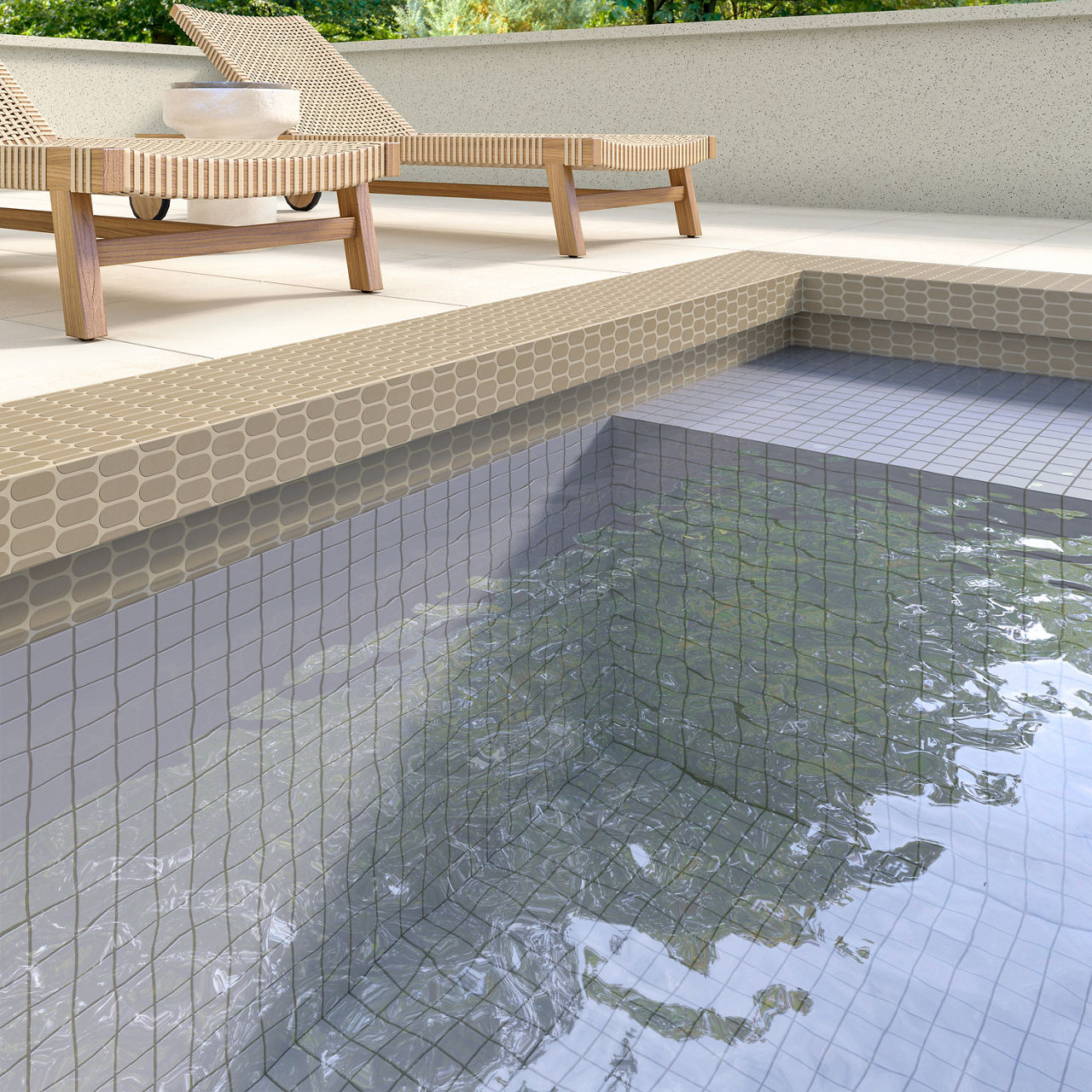

    Exterior Floor Applications (including pool decking & other wet areas with minimal footwear) ≥0.60 ✔
    Ramps & Inclines ≥0.65
    Walls/Backsplashes N/A ✔
    Countertops N/A ✔
    Pool Linings N/A ✔
    1/8"

    ●  Manufacturer Advisory: All tile is measured by the DCOF AcuTestTM method. Tiles with DCOF values less than 0.42 are not recommended for use in areas with wet or slippery conditions. For more information, see ANSI standard A137.1 section 6.2.2.1.10, available at www.tileusa.com.

    No additional notes

  • Specifications

    Performance Chart
    Test Method Result
    Water Absorption ASTM C373 < 0.5
    Breaking Strength ASTM C648 > or equal to 250 lbf
    Scratch Hardness ASTM MOHS 8
    Chemical Resistance ASTM C650 Resistant
