Panoramic Duet

Elestial Square 24X24 Matte

24X24 is the most familiar of Elestial's sizes, a classic square format that fits most residential and light commercial floors. Its coffee-brown veining runs consistently across every panel thanks to Reveal Imaging� technology, in a matte finish.
Countertop
Countertop
Floor
Floor
Wall
Wall
Special Features
Made in the USA Made in the USA
Other Sizes And Finishes
Other Available Colors

Overview

Elestial in 24X24 doesn't ask for a large room the way the bigger formats do. Reveal Imaging� technology still gives every panel its own variation of brown, so the tile holds interest even installed in a modest kitchen or bath. The matte finish keeps the floor sure-footed in either room.

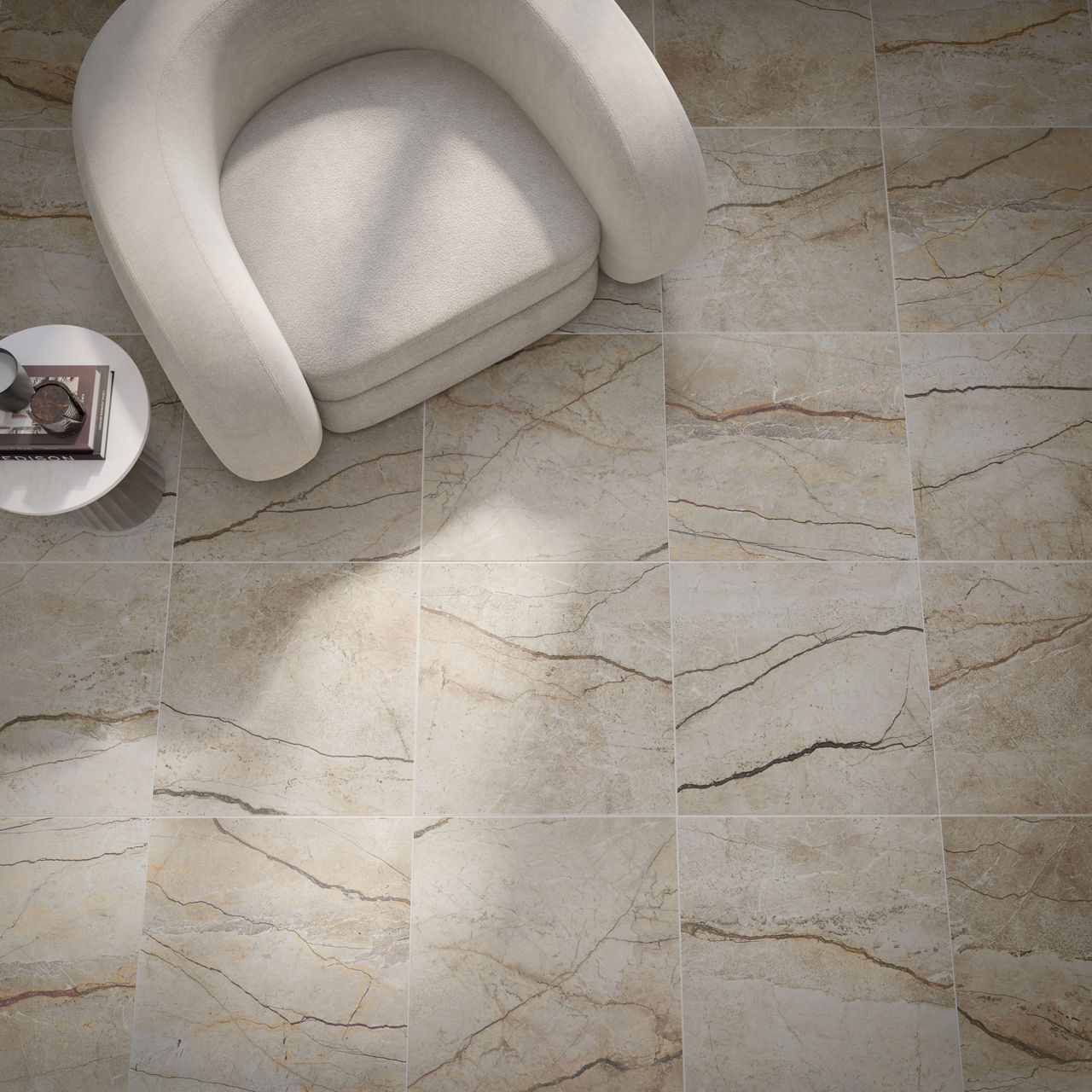

DAL_CM48_24x24_Elestial_MT_ScanPanel_Prop_01
×
Size:
Finish:
DAL_CM21_24x48_CalacattaAries_PL_Angle

Design Note

Because this size adapts to almost any layout, it works equally well in a moody kitchen or a contrast-driven primary bath. Black iron fixtures and warm walnut cabinetry stay the consistent pairing here too. Matte suits an everyday kitchen floor best, and the 2X2 mosaic carries the same brown onto the wall.
  • Product Details

    Collection Name Panoramic Duet
    Color Code CM48
    Color Name Elestial
    Color Family Gray

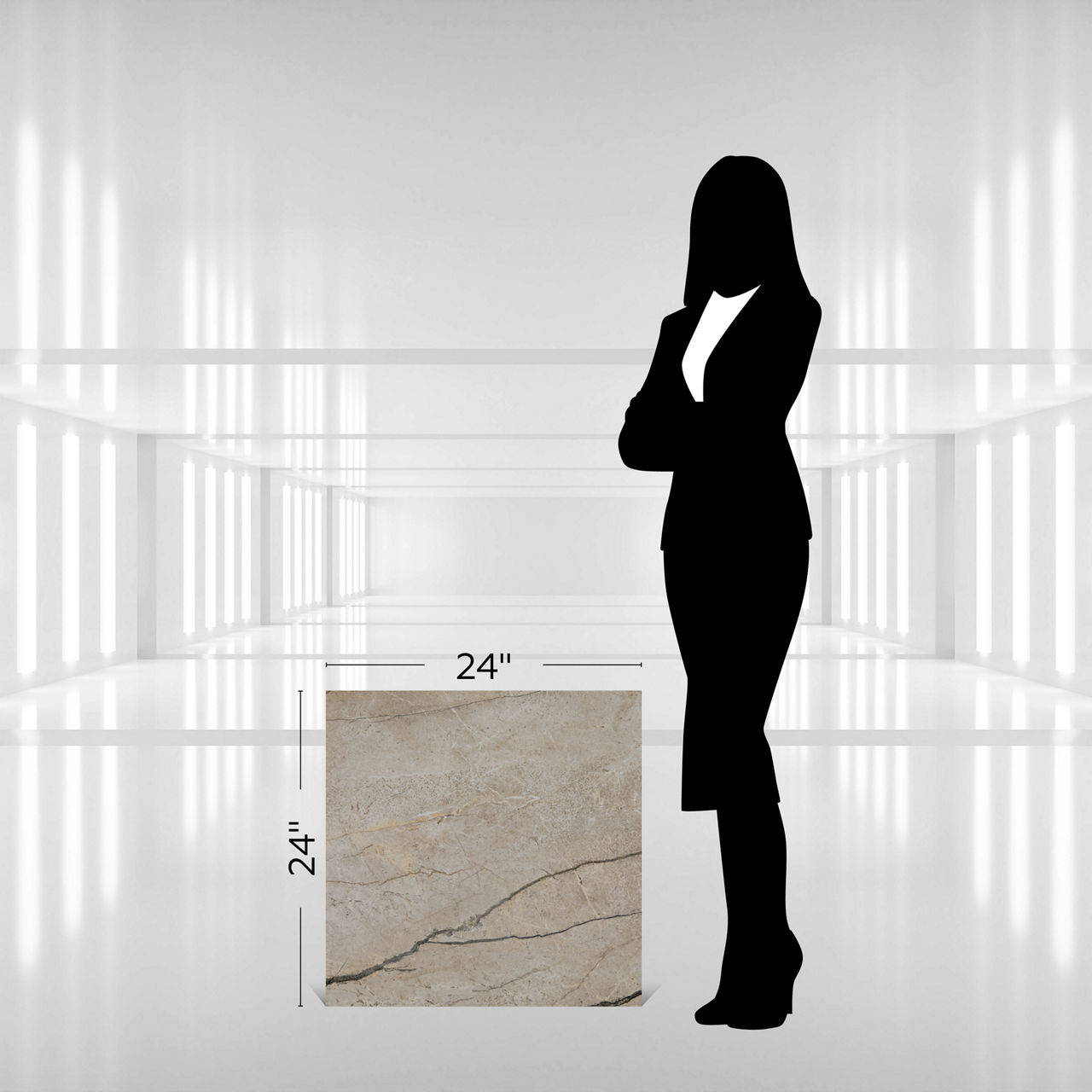

    Nominal Size 24X24
    Actual Size 23.402 X 23.402
    Nominal Thickness 5/16
    Mount Method Loose
    Size Category Large
    Product Shape Square
    Country of Origin United States
    Finish Matte
    Body Type ColorBody
    Edge Rectified
    Shade Variation V3 HIGH VARIATION
    Pre-Consumer Recycled 51.3
    Post-Consumer Recycled 0
  • Application

    Countertop
    Countertop
    Floor
    Floor
    Wall
    Wall
    Target Dcof Wet Suitable
    Dry & Level - Interior Floor N/A ✔
    Wet & Level - Interior Floor ≥0.42 ✔
    Shower Floors (Residential or Light Commercial) ≥0.42
    Exterior Floor Applications (including pool decking & other wet areas with minimal footwear) ≥0.60
    Ramps & Inclines ≥0.65
    Walls/Backsplashes N/A ✔
    Countertops N/A ✔
    Pool Linings N/A
    1/8"

    ●  A DCOF value of greater than or equal to 0.42 is the standard for tiles specified for level interior spaces expected to be walked upon when wet, as stated in ANSI A137.1-A326.3. For more information about DCOF and the DCOF AcuTest™, visit daltile.com/DCOF.

    No additional notes

  • Specifications

    Performance Chart
    Test Method Result
    Water Absorption ASTM C373 < 0.5
    Breaking Strength ASTM C648 > or equal to 275 lbf
    Scratch Hardness ASTM MOHS 8
    Chemical Resistance ASTM C650 Resistant
    Durability Chart - Floor Surface Wear Resistance
    1 - Residential Bathrooms
    2 - All Residential Areas
    3 - All Residential / Light Commercial
    4 - All Residential / Commercial
  • Download Tear Sheet

    Elestial Square 24X24 Matte

    View PDF
  • Special Features

    Special Features
    Made in the USA Made in the USA
